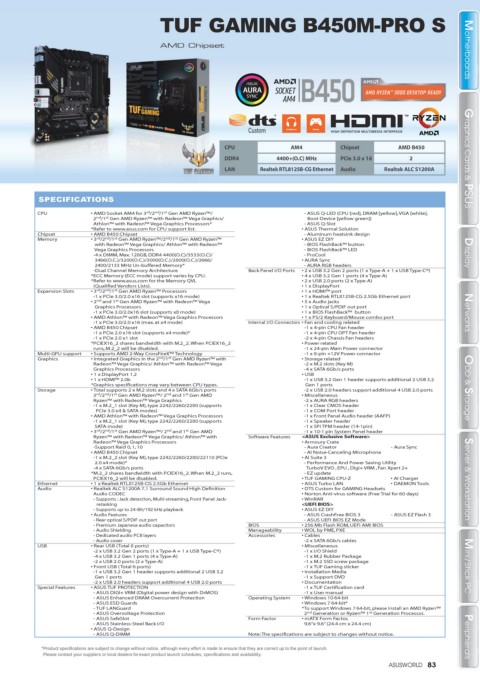

TUF GAMING B450M-PRO S

AMD Chipset Motherboards Motherboards

CPU AM4 Chipset AMD B450
DDR4 4400+(O.C) MHz PCIe 3.0 x 16 2 Graphics Cards & PSUS
LAN Realtek RTL8125B-CG Ethernet Audio Realtek ALC S1200A

SPECIFICATIONS
Graphics Cards & PSUS
CPU • AMD Socket AM4 for 3 rd /2 nd /1 st Gen AMD Ryzen™/ - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white],
2 nd /1 st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Boot Device [yellow green])
Athlon™ with Radeon™ Vega Graphics Processors* - ASUS Q-Slot
*Refer to www.asus.com for CPU support list. • ASUS Thermal Solution
Chipset • AMD B450 Chipset - Aluminum heatsink design
Memory • 3 rd /2 nd /1 st Gen AMD Ryzen™/2 nd /1 st Gen AMD Ryzen™ • ASUS EZ DIY
with Radeon™ Vega Graphics/ Athlon™ with Radeon™ - BIOS FlashBack™ button
Vega Graphics Processors - BIOS FlashBack™ LED
-4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3533(O.C)/ - ProCool Display Display
3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/ • AURA Sync
2400/2133 MHz Un-buffered Memory* - AURA RGB headers
-Dual Channel Memory Architecture Back Panel I/O Ports • 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
*ECC Memory (ECC mode) support varies by CPU. • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
*Refer to www.asus.com for the Memory QVL • 2 x USB 2.0 ports (2 x Type-A)
(Qualified Vendors Lists). • 1 x DisplayPort
Expansion Slots • 3 rd /2 nd /1 st Gen AMD Ryzen™ Processors • 1 x HDMI™ port
-1 x PCIe 3.0/2.0 x16 slot (supports x16 mode) • 1 x Realtek RTL8125B-CG 2.5Gb Ethernet port
• 2 nd and 1 st Gen AMD Ryzen™ with Radeon™ Vega • 5 x Audio jacks
Graphics Processors • 1 x Optical S/PDIF out port
-1 x PCIe 3.0/2.0x16 slot (supports x8 mode) • 1 x BIOS FlashBack™ button Networks
• AMD Athlon™ with Radeon™ Vega Graphics Processors • 1 x PS/2 Keyboard/Mouse combo port
-1 x PCIe 3.0/2.0 x16 (max. at x4 mode) Internal I/O Connectors • Fan and cooling related
• AMD B450 Chipset -1 x 4-pin CPU Fan header
-1 x PCIe 2.0 x16 slot (supports x4 mode)* -1 x 4-pin CPU OPT Fan header
Networks
-1 x PCIe 2.0 x1 slot -2 x 4-pin Chassis Fan headers
*PCIEX16_2 shares bandwidth with M.2_2. When PCIEX16_2 • Power related
runs, M.2_2 will be disabled. -1 x 24-pin Main Power connector
Multi-GPU support • Supports AMD 2-Way CrossFireX™ Technology -1 x 8-pin +12V Power connector
Graphics • Integrated Graphics in the 2 nd /1 st Gen AMD Ryzen™ with • Storage related
Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega -2 x M.2 slots (Key M)
Graphics Processors -4 x SATA 6Gb/s ports
• 1 x DisplayPort 1.2 • USB
• 1 x HDMI™ 2.0b -1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2
*Graphics specifications may vary between CPU types. Gen 1 ports
Storage • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports -2 x USB 2.0 headers support additional 4 USB 2.0 ports ODD & Storage
3 rd /2 nd /1 st Gen AMD Ryzen™/ 2 nd and 1 st Gen AMD • Miscellaneous
Ryzen™ with Radeon™ Vega Graphics -2 x AURA RGB headers
-1 x M.2_1 slot (Key M), type 2242/2260/2280 (supports -1 x Clear CMOS header
PCIe 3.0 x4 & SATA modes) -1 x COM Port header
• AMD Athlon™ with Radeon™ Vega Graphics Processors -1 x Front Panel Audio header (AAFP)
-1 x M.2_1 slot (Key M), type 2242/2260/2280 (supports -1 x Speaker header
ODD & Storage
SATA mode) -1 x SPI TPM header (14-1pin)
• 3 rd /2 nd /1 st Gen AMD Ryzen™/ 2 nd and 1 st Gen AMD -1 x 10-1 pin System Panel header
Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Software Features <ASUS Exclusive Software>
Radeon™ Vega Graphics Processors • Armoury Crate
-Support Raid 0, 1, 10 - Aura Creator - Aura Sync
• AMD B450 Chipset - AI Noise-Canceling Microphone
-1 x M.2_2 slot (Key M), type 2242/2260/2280/22110 (PCIe • AI Suite 3
2.0 x4 mode)* - Performance And Power Saving Utility
-4 x SATA 6Gb/s ports TurboV EVO , EPU , Digi+ VRM , Fan Xpert 2+
*M.2_2 shares bandwidth with PCIEX16_2. When M.2_2 runs, - EZ update
PCIEX16_2 will be disabled. • TUF GAMING CPU-Z Server & Workstation • AI Charger Server & Workstation
Ethernet • 1 x Realtek RTL8125B-CG 2.5Gb Ethernet • ASUS Turbo LAN • DAEMON Tools
Audio • Realtek ALC S1200A 7.1 Surround Sound High Definition • DTS Custom for GAMING Headsets
Audio CODEC • Norton Anti-virus software (Free Trial for 60 days)
- Supports : Jack detection, Multi-streaming, Front Panel Jack- • WinRAR
retasking <UEFI BIOS>
- Supports up to 24-Bit/192 kHz playback • ASUS EZ DIY
• Audio Features - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3
- Rear optical S/PDIF out port - ASUS UEFI BIOS EZ Mode
- Premium Japanese audio capacitors BIOS • 256 Mb Flash ROM, UEFI AMI BIOS
- Audio Shielding Manageability • WOL by PME, PXE
- Dedicated audio PCB layers Accessories • Cables
- Audio cover -2 x SATA 6Gb/s cables
USB • Rear USB (Total 8 ports) • Miscellaneous
-2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®) -1 x I/O Shield
-4 x USB 3.2 Gen 1 ports (4 x Type-A) -1 x M.2 Rubber Package
-2 x USB 2.0 ports (2 x Type-A) -1 x M.2 SSD screw package
• Front USB (Total 6 ports) -1 x TUF Gaming sticker Mini / Stick PC Mini / Stick PC
-1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 • Installation Media
Gen 1 ports -1 x Support DVD
-2 x USB 2.0 headers support additional 4 USB 2.0 ports • Documentation
Special Features • ASUS TUF PROTECTION -1 x TUF Certification card
- ASUS DIGI+ VRM (Digital power design with DrMOS) -1 x User manual
- ASUS Enhanced DRAM Overcurrent Protection Operating System • Windows 10 64-bit
- ASUS ESD Guards • Windows 7 64-bit*
- TUF LANGuard *To support Windows 7 64-bit, please install an AMD Ryzen™
- ASUS Overvoltage Protection 2 nd Generation or Ryzen™ 1 st Generation Processor.
- ASUS SafeSlot Form Factor • mATX Form Factor,
- ASUS Stainless-Steel Back I/O 9.6”x 9.6” (24.4 cm x 24.4 cm)
• ASUS Q-Design
- ASUS Q-DIMM Note: The specifications are subject to changes without notice. Peripherals
