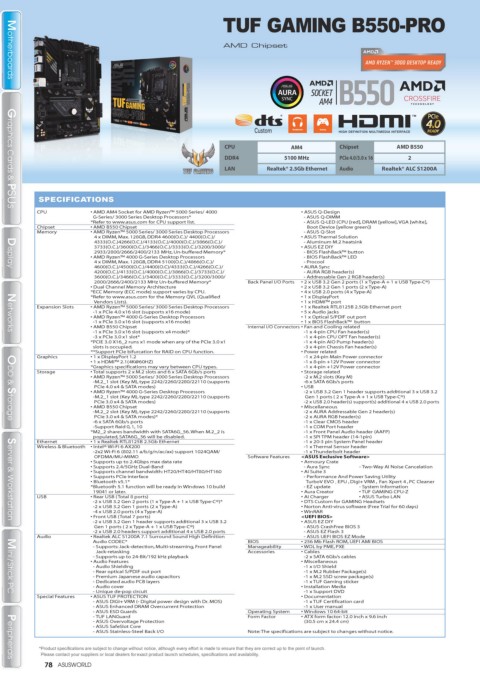

Page 80 - ASUS_WORLD_134_ebook

TUF GAMING B550-PRO

AMD Chipset

Motherboards
Motherboards

CPU AM4 Chipset AMD B550
DDR4 5100 MHz PCIe 4.0/3.0 x 16 2
LAN Realtek® 2.5Gb Ethernet Audio Realtek® ALC S1200A

SPECIFICATIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU • AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 • ASUS Q-Design
G-Series/ 3000 Series Desktop Processors* - ASUS Q-DIMM
*Refer to www.asus.com for CPU support list. - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white],
Chipset • AMD B550 Chipset Boot Device [yellow green])
Memory • AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors - ASUS Q-Slot
4 x DIMM, Max. 128GB, DDR4 4600(O.C.)/ 4400(O.C.)/ • ASUS Thermal Solution
4333(O.C.)4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/ - Aluminum M.2 heatsink
3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/ • ASUS EZ DIY
2933/2800/2666/2400/2133 MHz, Un-buffered Memory* - BIOS FlashBack™ button
• AMD Ryzen™ 4000 G-Series Desktop Processors - BIOS FlashBack™ LED
4 x DIMM, Max. 128GB, DDR4 5100(O.C.)/4866(O.C.)/ - Procool
4600(O.C.)/4500(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/ • AURA Sync
Display
Display
4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/ - AURA RGB header(s)
3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/ - Addressable Gen 2 RGB header(s)
2800/2666/2400/2133 MHz Un-buffered Memory* Back Panel I/O Ports • 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
• Dual Channel Memory Architecture • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
*ECC Memory (ECC mode) support varies by CPU. • 4 x USB 2.0 ports (4 x Type-A)
*Refer to www.asus.com for the Memory QVL (Qualified • 1 x DisplayPort
Vendors Lists). • 1 x HDMI™ port
Expansion Slots • AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors • 1 x Realtek RTL8125B 2.5Gb Ethernet port
-1 x PCIe 4.0 x16 slot (supports x16 mode) • 5 x Audio jacks
• AMD Ryzen™ 4000 G-Series Desktop Processors • 1 x Optical S/PDIF out port
-1 x PCIe 3.0 x16 slot (supports x16 mode) • 1 x BIOS FlashBack™ button
• AMD B550 Chipset Internal I/O Connectors • Fan and Cooling related
-1 x PCIe 3.0 x16 slot (supports x4 mode)* -1 x 4-pin CPU Fan header(s)
Networks
Networks
-3 x PCIe 3.0 x1 slot* -1 x 4-pin CPU OPT Fan header(s)
*PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 -1 x 4-pin AIO Pump header(s)
slots is occupied. -3 x 4-pin Chassis Fan header(s)
**Support PCIe bifurcation for RAID on CPU function. • Power related
Graphics • 1 x DisplayPort 1.2 -1 x 24-pin Main Power connector
• 1 x HDMI™ 2.1(4K@60HZ) -1 x 8-pin +12V Power connector
*Graphics specifications may vary between CPU types. -1 x 4-pin +12V Power connector
Storage • Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports • Storage related
• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors -2 x M.2 slots (Key M)
-M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports -6 x SATA 6Gb/s ports
PCIe 4.0 x4 & SATA modes) • USB
• AMD Ryzen™ 4000 G-Series Desktop Processors -2 x USB 3.2 Gen 1 header supports additional 3 x USB 3.2
-M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports Gen 1 ports ( 2 x Type-A + 1 x USB Type-C®)
PCIe 3.0 x4 & SATA modes) -2 x USB 2.0 header(s) support(s) additional 4 x USB 2.0 ports
• AMD B550 Chipset • Miscellaneous
-M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports -2 x AURA Addressable Gen 2 header(s)
PCIe 3.0 x4 & SATA modes)* -2 x AURA RGB header(s)
-6 x SATA 6Gb/s ports -1 x Clear CMOS header
ODD & Storage
ODD & Storage
-Support Raid 0, 1, 10 -1 x COM Port header
*M2_2 shares bandwidth with SATA6G_56. When M.2_2 is -1 x Front Panel Audio header (AAFP)
populated, SATA6G_56 will be disabled. -1 x SPI TPM header (14-1pin)
Ethernet • 1 x Realtek RTL8125B 2.5Gb Ethernet -1 x 20-3 pin System Panel header
Wireless & Bluetooth • Intel® Wi-Fi 6 AX200 -1 x Thermal Sensor header
-2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/ -1 x Thunderbolt header
OFDMA/MU-MIMO Software Features <ASUS Exclusive Software>
• Supports up to 2.4Gbps max data rate • Armoury Crate
• Supports 2.4/5GHz Dual-Band - Aura Sync - Two-Way AI Noise Cancelation
• Supports channel bandwidth: HT20/HT40/HT80/HT160 • AI Suite 3
• Supports PCIe interface - Performance And Power Saving Utility
• Bluetooth v5.1* TurboV EVO , EPU , Digi+ VRM , Fan Xpert 4 , PC Cleaner
*Bluetooth 5.1 function will be ready in Windows 10 build - EZ update - System Information
19041 or later. • Aura Creator • TUF GAMING CPU-Z
USB • Rear USB (Total 8 ports) • AI Charger • ASUS Turbo LAN
-2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)* • DTS Custom for GAMING Headsets
-2 x USB 3.2 Gen 1 ports (2 x Type-A) • Norton Anti-virus software (Free Trial for 60 days)
-4 x USB 2.0 ports (4 x Type-A) • WinRAR
• Front USB (Total 7 ports) <UEFI BIOS>
-2 x USB 3.2 Gen 1 header supports additional 3 x USB 3.2 • ASUS EZ DIY
Server & Workstation
Server & Workstation
Gen 1 ports ( 2 x Type-A + 1 x USB Type-C®) - ASUS CrashFree BIOS 3
-2 x USB 2.0 headers support additional 4 x USB 2.0 ports - ASUS EZ Flash 3
Audio • Realtek ALC S1200A 7.1 Surround Sound High Definition - ASUS UEFI BIOS EZ Mode
Audio CODEC* BIOS • 256 Mb Flash ROM, UEFI AMI BIOS
- Supports: Jack-detection, Multi-streaming, Front Panel Manageability • WOL by PME, PXE
Jack-retasking Accessories • Cables
- Supports up to 24-Bit/192 kHz playback -2 x SATA 6Gb/s cables
• Audio Features • Miscellaneous
- Audio Shielding -1 x I/O Shield
- Rear optical S/PDIF out port -1 x M.2 Rubber Package(s)
- Premium Japanese audio capacitors -1 x M.2 SSD screw package(s)
- Dedicated audio PCB layers -1 x TUF Gaming sticker
- Audio cover • Installation Media
- Unique de-pop circuit -1 x Support DVD
Mini / Stick PC
Mini / Stick PC
Special Features • ASUS TUF PROTECTION • Documentation
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS) -1 x TUF Certification card
- ASUS Enhanced DRAM Overcurrent Protection -1 x User manual
- ASUS ESD Guards Operating System • Windows 10 64-bit
- TUF LANGuard Form Factor • ATX form factor: 12.0 inch x 9.6 inch
- ASUS Overvoltage Protection (30.5 cm x 24.4 cm)
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O Note: The specifications are subject to changes without notice.
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
