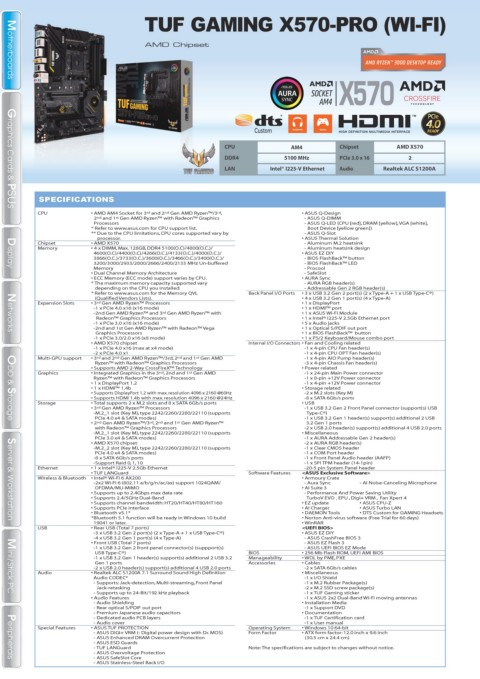

TUF GAMING X570-PRO (WI-FI)

AMD Chipset

Motherboards
Motherboards

CPU AM4 Chipset AMD X570
DDR4 5100 MHz PCIe 3.0 x 16 2
LAN Intel® I225-V Ethernet Audio Realtek ALC S1200A

SPECIFICATIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU • AMD AM4 Socket for 3 rd and 2 nd Gen AMD Ryzen™/3 rd , • ASUS Q-Design
2 nd and 1 st Gen AMD Ryzen™ with Radeon™ Graphics - ASUS Q-DIMM
Processors - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white],
* Refer to www.asus.com for CPU support list. Boot Device [yellow green])
** Due to the CPU limitations, CPU cores supported vary by - ASUS Q-Slot
processor. • ASUS Thermal Solution
Chipset • AMD X570 - Aluminum M.2 heatsink
Memory • 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/ - Aluminum heatsink design
4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/ • ASUS EZ DIY
3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/ - BIOS FlashBack™ button
3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered - BIOS FlashBack™ LED
Memory - Procool
Display
Display
• Dual Channel Memory Architecture - SafeSlot
• ECC Memory (ECC mode) support varies by CPU. • AURA Sync
* The maximum memory capacity supported vary - AURA RGB header(s)
depending on the CPU you installed. - Addressable Gen 2 RGB header(s)
* Refer to www.asus.com for the Memory QVL Back Panel I/O Ports • 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)
(Qualified Vendors Lists). • 4 x USB 3.2 Gen 1 port(s) (4 x Type-A)
Expansion Slots • 3 rd Gen AMD Ryzen™ Processors • 1 x DisplayPort
-1 x PCIe 4.0 x16 (x16 mode) • 1 x HDMI™ port
-2nd Gen AMD Ryzen™ and 3 rd Gen AMD Ryzen™ with • 1 x ASUS Wi-Fi Module
Radeon™ Graphics Processors • 1 x Intel® I225-V 2.5Gb Ethernet port
-1 x PCIe 3.0 x16 (x16 mode) • 5 x Audio jacks
-2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega • 1 x Optical S/PDIF out port
Graphics Processors • 1 x BIOS FlashBack™ button
Networks
Networks
-1 x PCIe 3.0/2.0 x16 (x8 mode) • 1 x PS/2 Keyboard/Mouse combo port
• AMD X570 chipset Internal I/O Connectors • Fan and Cooling related
-1 x PCIe 4.0 x16 (max at x4 mode) -1 x 4-pin CPU Fan header(s)
-2 x PCIe 4.0 x1 -1 x 4-pin CPU OPT Fan header(s)
Multi-GPU support • 3 rd and 2 nd Gen AMD Ryzen™/3rd, 2 nd and 1 st Gen AMD -1 x 4-pin AIO Pump header(s)
Ryzen™ with Radeon™ Graphics Processors -3 x 4-pin Chassis Fan header(s)
• Supports AMD 2-Way CrossFireX™ Technology • Power related
Graphics • Integrated Graphics in the 3 nd , 2nd and 1 st Gen AMD -1 x 24-pin Main Power connector
Ryzen™ with Radeon™ Graphics Processors -1 x 8-pin +12V Power connector
• 1 x DisplayPort 1.2 -1 x 4-pin +12V Power connector
• 1 x HDMI™ 1.4b • Storage related
• Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @60Hz -2 x M.2 slots (Key M)
• Supports HDMI 1.4b with max. resolution 4096 x 2160 @24Hz -8 x SATA 6Gb/s ports
Storage • Total supports 2 x M.2 slots and 8 x SATA 6Gb/s ports • USB
• 3 rd Gen AMD Ryzen™ Processors -1 x USB 3.2 Gen 2 Front Panel connector (support(s) USB
-M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports Type-C®)
PCIe 4.0 x4 & SATA modes) -1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB
ODD & Storage
• 2 nd Gen AMD Ryzen™/3 rd , 2 nd and 1 st Gen AMD Ryzen™ 3.2 Gen 1 ports
ODD & Storage
with Radeon™ Graphics Processors -2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
-M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports • Miscellaneous
PCIe 3.0 x4 & SATA modes) -1 x AURA Addressable Gen 2 header(s)
• AMD X570 chipset -2 x AURA RGB header(s)
-M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports -1 x Clear CMOS header
PCIe 4.0 x4 & SATA modes) -1 x COM Port header
-8 x SATA 6Gb/s ports -1 x Front Panel Audio header (AAFP)
-Support Raid 0, 1, 10 -1 x SPI TPM header (14-1pin)
Ethernet • 1 x Intel® I225-V 2.5Gb Ethernet -20-5 pin System Panel header
• TUF LANGuard Software Features <ASUS Exclusive Software>
Wireless & Bluetooth • Intel® Wi-Fi 6 AX200 • Armoury Crate
-2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/ - Aura Sync - AI Noise-Canceling Microphone
OFDMA/MU-MIMO • AI Suite 3
• Supports up to 2.4Gbps max data rate - Performance And Power Saving Utility
• Supports 2.4/5GHz Dual-Band TurboV EVO , EPU , Digi+ VRM , Fan Xpert 4
• Supports channel bandwidth: HT20/HT40/HT80/HT160 • EZ update • ASUS CPU-Z
• Supports PCIe interface • AI Charger • ASUS Turbo LAN
• Bluetooth v5.1* • DAEMON Tools • DTS Custom for GAMING Headsets
*Bluetooth 5.1 function will be ready in Windows 10 build • Norton Anti-virus software (Free Trial for 60 days)
Server & Workstation
Server & Workstation
19041 or later. • WinRAR
USB • Rear USB (Total 7 ports) <UEFI BIOS>
-3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®) • ASUS EZ DIY
-4 x USB 3.2 Gen 1 port(s) (4 x Type-A) - ASUS CrashFree BIOS 3
• Front USB (Total 7 ports) - ASUS EZ Flash 3
-1 x USB 3.2 Gen 2 front panel connector(s) (suppport(s) - ASUS UEFI BIOS EZ Mode
USB Type-C®) BIOS • 256 Mb Flash ROM, UEFI AMI BIOS
-1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Manageability • WOL by PME, PXE
Gen 1 ports Accessories • Cables
-2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports -2 x SATA 6Gb/s cables
Audio • Realtek ALC S1200A 7.1 Surround Sound High Definition • Miscellaneous
Audio CODEC* -1 x I/O Shield
- Supports: Jack-detection, Multi-streaming, Front Panel -1 x M.2 Rubber Package(s)
Jack-retasking -2 x M.2 SSD screw package(s)
- Supports up to 24-Bit/192 kHz playback -1 x TUF Gaming sticker
Mini / Stick PC
Mini / Stick PC
• Audio Features -1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
- Audio Shielding • Installation Media
- Rear optical S/PDIF out port -1 x Support DVD
- Premium Japanese audio capacitors • Documentation
- Dedicated audio PCB layers -1 x TUF Certification card
- Audio cover -1 x User manual
Special Features • ASUS TUF PROTECTION Operating System • Windows 10 64-bit
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS) Form Factor • ATX form factor: 12.0 inch x 9.6 inch
- ASUS Enhanced DRAM Overcurrent Protection (30.5 cm x 24.4 cm)
- ASUS ESD Guards
- TUF LANGuard Note: The specifications are subject to changes without notice.
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
Peripherals
Peripherals
- ASUS Stainless-Steel Back I/O
