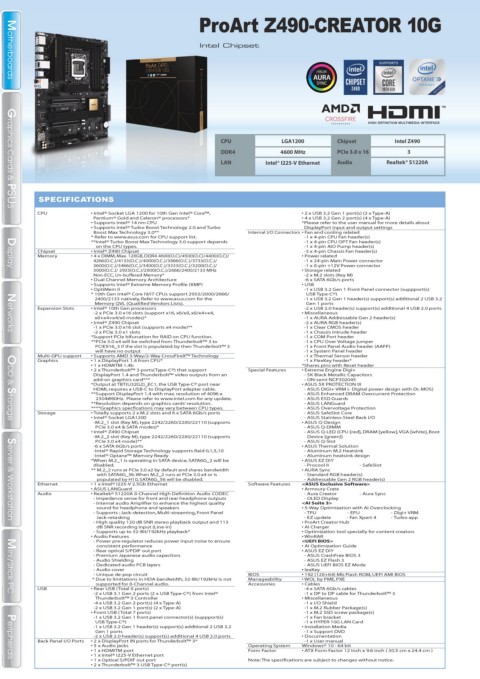

Page 90 - ASUS_WORLD_134_ebook

ProArt Z490-CREATOR 10G

Intel Chipset

Motherboards
Motherboards

CPU LGA1200 Chipset Intel Z490
DDR4 4600 MHz PCIe 3.0 x 16 3

LAN Intel® I225-V Ethernet Audio Realtek® S1220A

SPECIFICATIONS
Graphics Cards & PSUS
Graphics Cards & PSUS
CPU • Intel® Socket LGA 1200 for 10th Gen Intel® Core™, • 2 x USB 3.2 Gen 1 port(s) (2 x Type-A)
Pentium® Gold and Celeron® processors* • 4 x USB 3.2 Gen 2 port(s) (4 x Type-A)
• Supports Intel® 14 nm CPU *Please refer to the user manual for more details about
• Supports Intel® Turbo Boost Technology 2.0 and Turbo DisplayPort input and output settings
Boost Max Technology 3.0** Internal I/O Connectors • Fan and cooling related
* Refer to www.asus.com for CPU support list. -1 x 4-pin CPU Fan header(s)
**Intel® Turbo Boost Max Technology 3.0 support depends -1 x 4-pin CPU OPT Fan header(s)
on the CPU types. -1 x 4-pin AIO Pump header(s)
Chipset • Intel® Z490 Chipset -3 x 4-pin Chassis Fan header(s)
Memory • 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/4400(O.C)/ • Power related
4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/ -1 x 24-pin Main Power connector
3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/ -1 x 8-pin +12V Power connector
Display
Display
3000(O.C.)/ 2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz • Storage related
Non-ECC, Un-buffered Memory* -2 x M.2 slots (Key M)
• Dual Channel Memory Architecture -6 x SATA 6Gb/s ports
• Supports Intel® Extreme Memory Profile (XMP) • USB
• OptiMem II -1 x USB 3.2 Gen 1 Front Panel connector (suppport(s)
* 10th Gen Intel® Core i9/i7 CPUs support 2933/2800/2666/ USB Type-C®)
2400/2133 natively, Refer to www.asus.com for the -1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2
Memory QVL (Qualified Vendors Lists). Gen 1 ports
Expansion Slots • Intel® 10th Gen processors -2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
-2 x PCIe 3.0 x16 slots (support x16, x8/x8, x8/x4+x4, • Miscellaneous
x8+x4+x4/x0 modes)* -1 x AURA Addressable Gen 2 header(s)
• Intel® Z490 Chipset -2 x AURA RGB header(s)
-1 x PCIe 3.0 x16 slot (supports x4 mode)** -1 x Clear CMOS header
-2 x PCIe 3.0 x1 slots -1 x Chassis Intrude header
Networks
Networks
*Support PCIe bifurcation for RAID on CPU function. -1 x COM Port header
**PCIe 3.0 x4 will be switched from Thunderbolt™ 3 to -1 x CPU Over Voltage jumper
PCIEX16_3 if the slot is populated; by then Thunderbolt™ 3 -1 x Front Panel Audio header (AAFP)
will have no output -1 x System Panel header
Multi-GPU support • Supports AMD 3-Way/2-Way CrossFireX™ Technology -1 x Thermal Sensor header
Graphics • 1 x DisplayPort 1.4 from CPU* -1 x FlexKey header*
• 1 x HDMITM 1.4b *Shares pins with Reset header
• 2 x Thunderbolt™ 3 ports(Type-C®) that support Special Features • Extreme Engine Digi+
DisplayPort 1.4 and Thunderbolt™ video outputs from an - 5K Black Metallic Capacitors
add-on graphics card*** - ON-semi NCP302045
*Output at TBT(U32G2)_EC1, the USB Type-C® port near • ASUS 5X PROTECTION III
HDMI, requires a USB-C to DisplayPort adapter cable. - ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
**Support DisplayPort 1.4 with max. resolution of 4096 x - ASUS Enhanced DRAM Overcurrent Protection
2304@60Hz. Please refer to www.intel.com for any update. - ASUS ESD Guards
**Resolution depends on graphics cards’ resolution. - ASUS LANGuard
****Graphics specfications may vary between CPU types. - ASUS Overvoltage Protection
Storage • Totally supports 2 x M.2 slots and 6 x SATA 6Gb/s ports - ASUS SafeSlot Core
• Intel® Socket LGA1200 - ASUS Stainless-Steel Back I/O
-M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports • ASUS Q-Design
ODD & Storage
ODD & Storage
PCIe 3.0 x4 & SATA modes)* - ASUS Q-DIMM
• Intel® Z490 Chipset - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot
-M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports Device [green])
PCIe 3.0 x4 mode)** - ASUS Q-Slot
-6 x SATA 6Gb/s ports • ASUS Thermal Solution
-Intel® Rapid Storage Technology supports Raid 0,1,5,10 - Aluminum M.2 Heatsink
-Intel® Optane™ Memory Ready - Aluminum heatsink design
*When M.2_1 is operating in SATA device, SATA6G_2 will be • ASUS EZ DIY
disabled. - Procool II - SafeSlot
** M.2_2 runs at PCIe 3.0 x2 by default and shares bandwidth • AURA Sync
with SATA6G_56. When M.2_2 runs at PCIe 3.0 x4 or is - Standard RGB header(s)
populated by H10, SATA6G_56 will be disabled. - Addressable Gen 2 RGB header(s)
Ethernet • 1 x Intel® I225-V 2.5Gb Ethernet Software Features <ASUS Exclusive Software>
• ASUS LANGuard • Armoury Crate
Audio • Realtek® S1220A 8-Channel High Definition Audio CODEC - Aura Creator - Aura Sync
- Impedance sense for front and rear headphone outputs - OLED Display
- Internal audio Amplifier to enhance the highest quality <AI Suite 3>
sound for headphone and speakers • 5-Way Optimization with AI Overclocking
- Supports : Jack-detection, Multi-streaming, Front Panel - TPU - EPU - Digi+ VRM
Jack-retasking - EZ update - Fan Xpert 4 - Turbo app
Server & Workstation
- High quality 120 dB SNR stereo playback output and 113 • ProArt Creator Hub
Server & Workstation
dB SNR recording input (Line-in) • AI Charger
- Supports up to 32-Bit/192kHz playback* • Optimization tool specially for content creators
• Audio Features • WinRAR
- Power pre-regulator reduces power input noise to ensure <UEFI BIOS>
consistent performance • AI Optimization Guide
- Rear optical S/PDIF out port • ASUS EZ DIY
- Premium Japanese audio capacitors - ASUS CrashFree BIOS 3
- Audio Shielding - ASUS EZ Flash 3
- Dedicated audio PCB layers - ASUS UEFI BIOS EZ Mode
- Audio cover • lexKey
- Unique de-pop circuit BIOS • 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not Manageability • WOL by PME, PXE
supported for 8-Channel audio. Accessories • Cables
USB • Rear USB (Total 8 ports) -4 x SATA 6Gb/s cables
-2 x USB 3.1 Gen 2 ports (2 x USB Type-C®) from Intel® -1 x DP to DP cable for Thunderbolt™ 3
Mini / Stick PC
Mini / Stick PC
Thunderbolt™ 3 Controller • Miscellaneous
-4 x USB 3.2 Gen 2 port(s) (4 x Type-A) -1 x I/O Shield
-2 x USB 3.2 Gen 1 port(s) (2 x Type-A) -1 x M.2 Rubber Package(s)
• Front USB (Total 7 ports) -1 x M.2 SSD screw package(s)
-1 x USB 3.2 Gen 1 front panel connector(s) (suppport(s) -1 x Fan bracket
USB Type-C®) -1 x HYPER 10G LAN Card
-1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 • Installation Media
Gen 1 ports -1 x Support DVD
-2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports • Documentation
Back Panel I/O Ports • 2 x DisplayPort IN ports for Thunderbolt™ 3* -1 x User manual
• 5 x Audio jacks Operating System Windows® 10 - 64 bit
• 1 x HDMITM port Form Factor • ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• 1 x Intel® I225-V Ethernet port
• 1 x Optical S/PDIF out port Note: The specifications are subject to changes without notice.
Peripherals
Peripherals
• 2 x Thunderbolt™ 3 USB Type-C® port(s)
