Cell Stack(Module)
1
☞ Cell stack design technology is the core of water electrolysis
TM
HM Series cell stack has a zero-gap configuration which a porous anode(②) and cathode(④) are
pressed on either side of the diaphragm(③). This configuration is an advanced electrolysis cell
design that helps dramatically reduce energy consumption for electrolysis.
O 2+electrolyte H 2+electrolyte
electrolyte electrolyte
TM
<Zero-Gap Structure> <HM Series Cell Stack>
Specifications of Cell Stack Components
Components Specifications Characteristics
2
l high surface area : 95cm /g
Anode(②)
activated porous metal l low overvoltage
Cathode(④)
l high corrosion resistance
l high heat resistance(160℃)
Ion exchange organic
Diaphragm(③) l hydrophilic
material
l pore size < 10um
l easy discharge of gas bubble
Conductor(①) expanded metal sheet
l high corrosion resistance
Bipolar plate
metal plate l high corrosion resistance
(⑤)
Cell frame(⑥) injection molded polysulfone l high heat resistance(180℃)
Gasket PTFE l high corrosion resistance(200℃)
TM

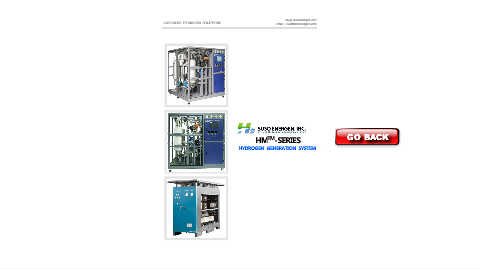

HM -Series Hydrogen Generators TEL : +82-31-451-6431, FAX : +82-31-451-6435
