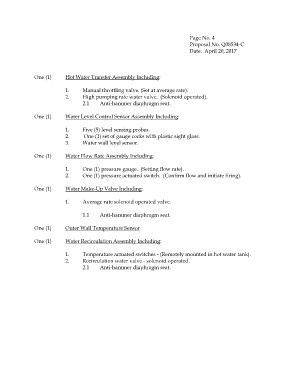

Page No. 4
Proposal No. Q08534-C
Date: April 20, 2017

One (1) Hot Water Transfer Assembly Including:

1. Manual throttling valve. (Set at average rate).
2. High pumping rate water valve. (Solenoid operated).
2.1 Anti-hammer diaphragm seat.

One (1) Water Level Control Sensor Assembly Including:

1. Five (5) level sensing probes.
2. One (1) set of gauge cocks with plastic sight glass.
3. Water wall level sensor.

One (1) Water Flow Rate Assembly Including:

1. One (1) pressure gauge. (Setting flow rate).
2. One (1) pressure actuated switch. (Confirm flow and initiate firing).

One (1) Water Make-Up Valve Including:

1. Average rate solenoid operated valve.

1.1 Anti-hammer diaphragm seat.

One (1) Outer Wall Temperature Sensor

One (1) Water Recirculation Assembly Including:

1. Temperature actuated switches - (Remotely mounted in hot water tank).
2. Recirculation water valve - solenoid operated.
2.1 Anti-hammer diaphragm seat.
