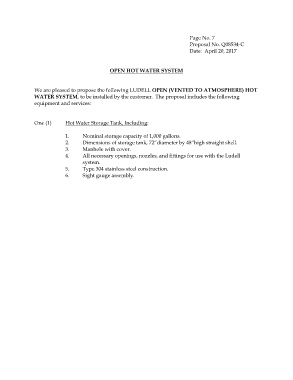

Page No. 7
Proposal No. Q08534-C
Date: April 20, 2017
OPEN HOT WATER SYSTEM
We are pleased to propose the following LUDELL OPEN (VENTED TO ATMOSPHERE) HOT
WATER SYSTEM, to be installed by the customer. The proposal includes the following
equipment and services:
One (1) Hot Water Storage Tank, Including:
1. Nominal storage capacity of 1,000 gallons.
2. Dimensions of storage tank, 72“diameter by 48“high straight shell.
3. Manhole with cover.
4. All necessary openings, nozzles, and fittings for use with the Ludell
system.
5. Type 304 stainless steel construction.
6. Sight gauge assembly.
