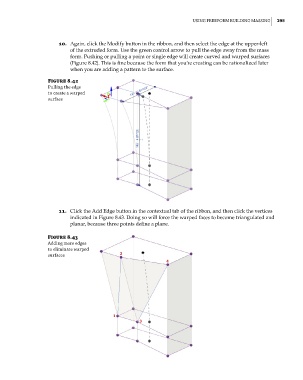

Using freeforM BUilding MAssing 295

10. Again, click the Modify button in the ribbon, and then select the edge at the upper-left
of the extruded form. Use the green control arrow to pull the edge away from the mass
form. Pushing or pulling a point or single edge will create curved and warped surfaces
(Figure 8.42). This is fine because the form that you’re creating can be rationalized later
when you are adding a pattern to the surface.
Figure 8.42
Pulling the edge
to create a warped
surface

11. Click the Add Edge button in the contextual tab of the ribbon, and then click the vertices
indicated in Figure 8.43. Doing so will force the warped faces to become triangulated and
planar, because three points define a plane.

Figure 8.43
Adding more edges
to eliminate warped
surfaces 2
4

1
3
