300 | ChAPter 8 AdvAnced Modeling And MAssing

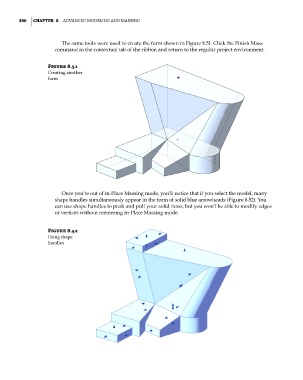

The same tools were used to create the form shown in Figure 8.51. Click the Finish Mass
command in the contextual tab of the ribbon and return to the regular project environment.

Figure 8.51
creating another
form

Once you’re out of In-Place Massing mode, you’ll notice that if you select the model, many
shape handles simultaneously appear in the form of solid blue arrowheads (Figure 8.52). You
can use shape handles to push and pull your solid mass, but you won’t be able to modify edges
or vertices without reentering In-Place Massing mode.

Figure 8.52
Using shape
handles
