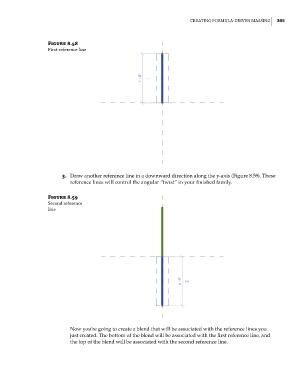

creATing forMUlA-driven MAssing 305

Figure 8.58
first reference line

3. Draw another reference line in a downward direction along the y-axis (Figure 8.59). These
reference lines will control the angular “twist” in your finished family.

Figure 8.59
second reference
line

Now you’re going to create a blend that will be associated with the reference lines you
just created. The bottom of the blend will be associated with the first reference line, and
the top of the blend will be associated with the second reference line.
