Using freeforM BUilding MAssing 301

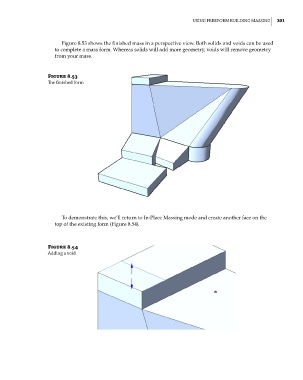

Figure 8.53 shows the finished mass in a perspective view. Both solids and voids can be used
to complete a mass form. Whereas solids will add more geometry, voids will remove geometry
from your mass.

Figure 8.53
The finished form

To demonstrate this, we’ll return to In-Place Massing mode and create another face on the
top of the existing form (Figure 8.54).

Figure 8.54
Adding a void
