298 | ChAPter 8 AdvAnced Modeling And MAssing

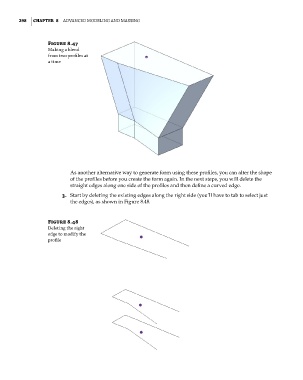

Figure 8.47
Making a blend
from two profiles at
a time
As another alternative way to generate form using these profiles, you can alter the shape
of the profiles before you create the form again. In the next steps, you will delete the
straight edges along one side of the profiles and then define a curved edge.
3. Start by deleting the existing edges along the right side (you’ll have to tab to select just
the edges), as shown in Figure 8.48.
Figure 8.48
deleting the right
edge to modify the
profile
