350 | ChApter 9 ConCeptual Design anD Design analysis

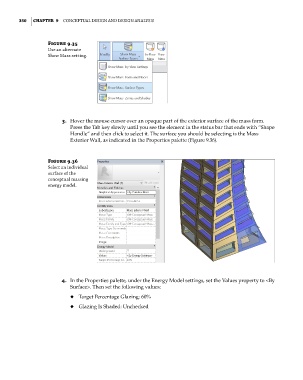

Figure 9.35
use an alternate
show Mass setting.

3. Hover the mouse cursor over an opaque part of the exterior surface of the mass form.
Press the Tab key slowly until you see the element in the status bar that ends with “Shape
Handle” and then click to select it. The surface you should be selecting is the Mass
Exterior Wall, as indicated in the Properties palette (Figure 9.36).

Figure 9.36
select an individual
surface of the
conceptual massing
energy model.

4. In the Properties palette, under the Energy Model settings, set the Values property to <By
Surface>. Then set the following values:

◆ ◆ Target Percentage Glazing: 60%
◆ ◆ Glazing Is Shaded: Unchecked
