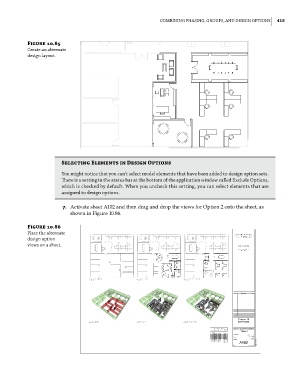

CoMBining Phasing, grouPs, and design oPtions 415
Figure 10.85
Create an alternate
design layout.
Selecting elements in Design Options
You might notice that you can’t select model elements that have been added to design option sets.
There is a setting in the status bar at the bottom of the application window called exclude options,
which is checked by default. When you uncheck this setting, you can select elements that are
assigned to design options.
7. Activate sheet A102 and then drag and drop the views for Option 2 onto the sheet, as
shown in Figure 10.86.
Figure 10.86
Place the alternate
design option
views on a sheet.
