22 | ChAPter 2 Applying the principles of the User interfAce And project orgAnizAtion

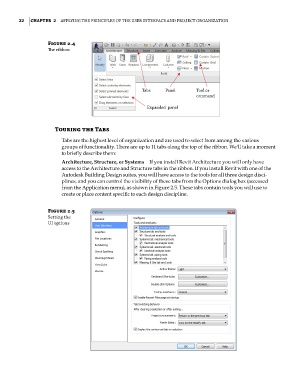

Figure 2.4
The ribbon
Tabs Panel Tool or
command
Expanded panel
touring the tabs
Tabs are the highest level of organization and are used to select from among the various
groups of functionality. There are up to 11 tabs along the top of the ribbon. We’ll take a moment
to briefly describe them:
Architecture, Structure, or Systems If you install Revit Architecture you will only have
access to the Architecture and Structure tabs in the ribbon. If you install Revit with one of the
Autodesk Building Design suites, you will have access to the tools for all three design disci-
plines, and you can control the visibility of these tabs from the Options dialog box (accessed
from the Application menu), as shown in Figure 2.5. These tabs contain tools you will use to
create or place content specific to each design discipline.
Figure 2.5
setting the
Ui options
