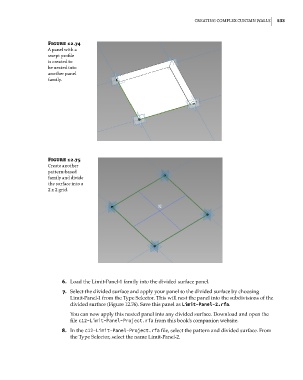

Creating CoMPlex Curtain Walls 533

Figure 12.74
a panel with a
swept profile
is created to
be nested into
another panel
family.

Figure 12.75
Create another
pattern-based
family and divide
the surface into a
2 x 2 grid.

6. Load the Limit-Panel-1 family into the divided surface panel.
7. Select the divided surface and apply your panel to the divided surface by choosing
Limit-Panel-1 from the Type Selector. This will nest the panel into the subdivisions of the
divided surface (Figure 12.76). Save this panel as Limit-Panel-2.rfa.
You can now apply this nested panel into any divided surface. Download and open the
file c12-Limit-Panel-Project.rfa from this book’s companion website.
8. In the c12-Limit-Panel-Project.rfa file, select the pattern and divided surface. From
the Type Selector, select the name Limit-Panel-2.
