598 | ChaptEr 14 Designing with the Family eDitor

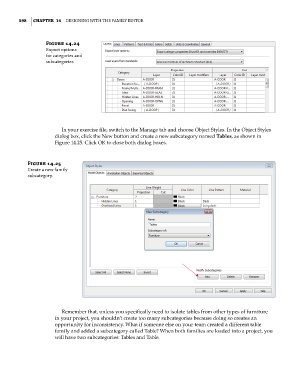

Figure 14.24
export options
for categories and
subcategories

In your exercise file, switch to the Manage tab and choose Object Styles. In the Object Styles
dialog box, click the New button and create a new subcategory named Tables, as shown in
Figure 14.25. Click OK to close both dialog boxes.

Figure 14.25
Create a new family
subcategory.

Remember that, unless you specifically need to isolate tables from other types of furniture
in your project, you shouldn’t create too many subcategories because doing so creates an
opportunity for inconsistency. What if someone else on your team created a different table
family and added a subcategory called Table? When both families are loaded into a project, you
will have two subcategories: Tables and Table.
