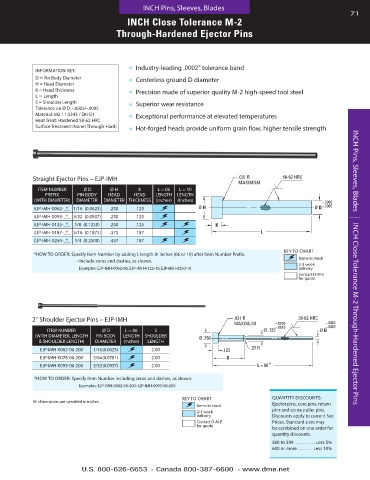

Page 71 - Die Casting Die Assemblies

INCH Pins, Sleeves, Blades
71
INCH Close Tolerance M-2

Through-Hardened Ejector Pins

■ Industry-leading .0002" tolerance band
INFORMATION KEY:
D = Pin Body Diameter ■ Centerless ground D diameter
H = Head Diameter
K = Head Thickness ■ Precision made of superior quality M-2 high-speed tool steel
L = Length
S = Shoulder Length ■ Superior wear resistance
Tolerance on Ø D: - .0003/- .0005
Material: M2 / 1 .3343 / SKH51 ■ Exceptional performance at elevated temperatures
Heat Treat: Hardened 58-62 HRC
Surface Treatment: None (Through-Hard) ■ Hot-forged heads provide uniform grain flow, higher tensile strength

Straight Ejector Pins – EJP-IMH .031 R 58-62 HRC
MAXIMUM
ITEM NUMBER Ø D Ø H K L = 06 L = 10
PREFIX PIN BODY HEAD HEAD LENGTH LENGTH
(WITH DIAMETER) DIAMETER DIAMETER THICKNESS (Inches) (Inches) –.0003
EJP-IMH-0062-_*_ 1/16 (0 .0625) .250 .125 Ø H Ø D –.0005
EJP-IMH-0093-_*_ 3/32 (0 .0937) .250 .125
EJP-IMH-0125-_*_ 1/8 (0 .1250) .250 .125 K
EJP-IMH-0187-_*_ 3/16 (0 .1875) .375 .187 L
EJP-IMH-0250-_*_ 1/4 (0 .2500) .437 .187
KEY TO CHART
*HOW TO ORDER: Specify Item Number by adding L length in inches (06 or 10) after Item Number Prefix .
n Include zeros and dashes, as shown . Items in stock
2-3 week
Examples: EJP-IMH-0062-06; EJP-IMH-0125-10; EJP-IMH-0250-10 delivery INCH Pins, Sleeves, Blades | INCH Close Tolerance M-2 Through-Hardened Ejector Pins
Contact D-M-E
for quote

2" Shoulder Ejector Pins – EJP-IMH .031 R 58-62 HRC
MAXIMUM +.0000 –.0003
–.0005
ITEM NUMBER Ø D L = 06 S Ø .125 –.0010 Ø D
(WITH DIAMETER, LENGTH PIN BODY LENGTH SHOULDER Ø .250
& SHOULDER LENGTH) DIAMETER (Inches) LENGTH
EJP-IMH-0062-06-200 1/16 (0 .0625) 2 .00 .125 .25 R
EJP-IMH-0078-06-200 5/64 (0 .0781) 2 .00 S

EJP-IMH-0093-06-200 3/32 (0 .0937) 2 .00 L = 06 "
*HOW TO ORDER: Specify Item Number including zeros and dashes, as shown .
Examples: EJP-IMH-0062-06-200; EJP-IMH-0093-06-200

KEY TO CHART QUANTITY DISCOUNTS:
All dimensions are specified in inches . Ejector pins, core pins, return
Items in stock
2-3 week pins and sprue puller pins .
delivery Discounts apply to current Net
Contact D-M-E Prices . Standard sizes may
for quote be combined on one order for
quantity discounts .
300 to 599 . . . . . . . . . . Less 5%
600 or more . . . . . . . Less 10%

U.S. 800-626-6653 n Canada 800-387-6600 n www.dme.net
