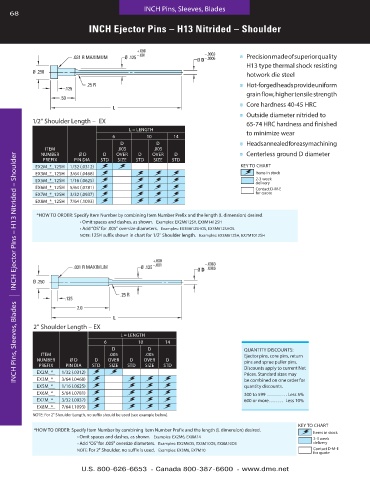

Page 68 - Die Casting Die Assemblies

INCH Pins, Sleeves, Blades
68

INCH Ejector Pins – H13 Nitrided – Shoulder

+.000
.031 R MAXIMUM Ø .125 –.001 Ø D –.0003 ■ Precision made of superior quality
–.0006
H13 type thermal shock resisting
Ø .250
hotwork die steel
.25 R ■ Hot-forged heads provide uniform
.125
grain flow, higher tensile strength
.50
■ Core hardness 40-45 HRC
L
■ Outside diameter nitrided to
1/2" Shoulder Length – EX 65-74 HRC hardness and finished
L = LENGTH to minimize wear
6 10 14
D D ■ Heads annealed for easy machining
ITEM .005 .005
NUMBER Ø D D OVER D OVER D ■ Centerless ground D diameter
INCH Pins, Sleeves, Blades | INCH Ejector Pins – H13 Nitrided – Shoulder
PREFIX PIN DIA STD SIZE STD SIZE STD
EX2M_*_12SH 1/32 ( .0312) KEY TO CHART
EX3M_*_12SH 3/64 ( .0468) Items in stock
EX5M_*_12SH 1/16 ( .0625) 2-3 week
delivery
EX6M_*_12SH 5/64 ( .0781) Contact D-M-E
EX7M_*_12SH 3/32 ( .0937) for quote
EX8M_*_12SH 7/64 ( .1093)

*HOW TO ORDER: Specify Item Number by combining Item Number Prefix and the length (L dimension) desired .
n Omit spaces and dashes, as shown . Examples: EX2M612SH, EX8M1412SH
n Add “OS” for .005" oversize diameters . Examples: EX3M612SHOS, EX3M612SHOS
NOTE: 12SH suffix shown in chart for 1/2" Shoulder length . Examples: EX3M612SH, EX7M1012SH

+.000
.031 R MAXIMUM Ø .125 –.001 Ø D –.0003
–.0006

Ø .250
.25 R
.125
2.0
L
2" Shoulder Length – EX
L = LENGTH
6 10 14
D D QUANTITY DISCOUNTS:
ITEM .005 .005 Ejector pins, core pins, return
NUMBER Ø D D OVER D OVER D pins and sprue puller pins .
PREFIX PIN DIA STD SIZE STD SIZE STD Discounts apply to current Net
EX2M_*_ 1/32 ( .0312) Prices . Standard sizes may
EX3M_*_ 3/64 ( .0468) be combined on one order for
EX5M_*_ 1/16 ( .0625) quantity discounts .
EX6M_*_ 5/64 ( .0781) 300 to 599 . . . . . . . . . . Less 5%
EX7M_*_ 3/32 ( .0937) 600 or more . . . . . . . Less 10%
EX8M_*_ 7/64 ( .1093)
NOTE: For 2" Shoulder Length, no suffix should be used (see example below) .
KEY TO CHART
*HOW TO ORDER: Specify Item Number by combining Item Number Prefix and the length (L dimension) desired . Items in stock
n Omit spaces and dashes, as shown . Examples: EX2M6, EX8M14 2-3 week
n Add “OS” for .005" oversize diameters . Examples: EX2M6OS, EX5M10OS, EX8M10OS delivery
NOTE: For 2" Shoulder, no suffix is used . Examples: EX3M6, EX7M10 Contact D-M-E
for quote

U.S. 800-626-6653 n Canada 800-387-6600 n www.dme.net
