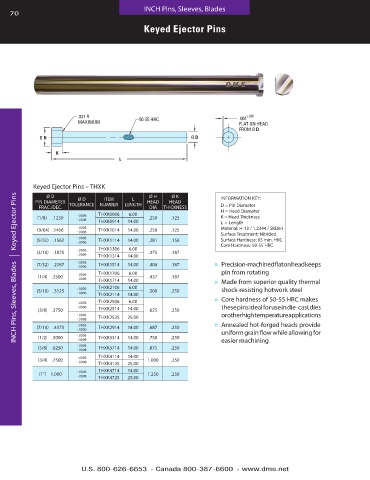

Page 70 - Die Casting Die Assemblies

INCH Pins, Sleeves, Blades
70

Keyed Ejector Pins

.031 R.031 R .004 .004
±.002 ±.002
MAXIMUMMAXIMUM 50-55 HRC50-55 HRC FLAT ON HEAD FLAT ON HEAD
FROM Ø DFROM Ø D
Ø H Ø H Ø D Ø D

K K
L L

Keyed Ejector Pins – THXK
INCH Pins, Sleeves, Blades | Keyed Ejector Pins
Ø D Ø H Ø K INFORMATION KEY:
PIN DIAMETER Ø D ITEM L HEAD HEAD
FRAC ./DEC . TOLERANCE NUMBER LENGTH DIA THICKNESS D = Pin Diameter
H = Head Diameter
6 .00
(1/8) .1250 - .0003 THXK0906 14 .00 .250 .125 K = Head Thickness
- .0006
THXK0914
L = Length
(9/64) .1406 - .0003 THXK1014 14 .00 .250 .125 Material: H-13 / 1 .2344 / SKD61
- .0006
Surface Treatment: Nitrided
(5/32) .1562 - .0003 THXK1114 14 .00 .281 .156 Surface Hardness: 65 min . HRC
- .0006
Core Hardness: 50-55 HRC
6 .00
(3/16) .1875 - .0003 THXK1306 14 .00 .375 .187
- .0006
THXK1314
(7/32) .2187 - .0003 THXK1514 14 .00 .406 .187 ■ Precision-machined flat on head keeps
- .0006
pin from rotating
6 .00
(1/4) .2500 - .0003 THXK1706 14 .00 .437 .187 ■ Made from superior quality thermal
- .0006
THXK1714
6 .00
(5/16) .3125 - .0003 THXK2106 14 .00 .500 .250 shock-resisting hotwork steel
- .0006
THXK2114
- .0003 THXK2506 6 .00 ■ Core hardness of 50-55 HRC makes
- .0006 THXK2514 14 .00 these pins ideal for use in die-cast dies
(3/8) .3750 .625 .250
- .0003 THXK2525 25 .00 or other high temperature applications
- .0008
(7/16) .4375 - .0003 THXK2914 14 .00 .687 .250 ■ Annealed hot-forged heads provide
- .0006
uniform grain flow while allowing for
(1/2) .5000 - .0003 THXK3314 14 .00 .750 .250 easier machining
- .0008
(5/8) .6250 - .0003 THXK3714 14 .00 .875 .250
- .0008
(3/4) .7500 - .0003 THXK4114 14 .00 1 .000 .250
- .0008
THXK4125
25 .00
(1”) 1 .000 - .0003 THXK4714 14 .00 1 .250 .250
- .0008
THXK4725
25 .00
