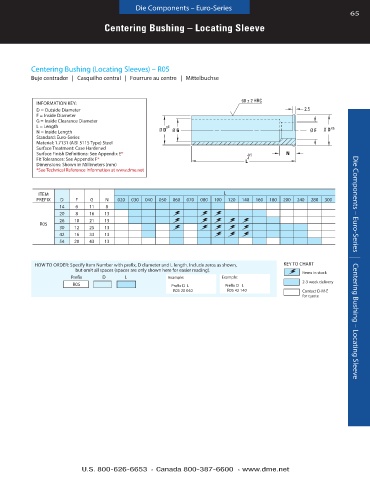

Page 65 - Die Casting Die Assemblies

Die Components – Euro-Series
65
Centering Bushing – Locating Sleeve

Centering Bushing (Locating Sleeves) – R05
Buje centrador | Casquilho central | Fourrure au centre | Mittelbuchse

INFORMATION KEY: 60 ± 2 HRC
D = Outside Diameter 2.5
F = Inside Diameter
G = Inside Clearance Diameter
L = Length g6 K6
N = Inside Length Ø D Ø G Ø F Ø D
Standard: Euro-Series
Material: 1 .7131 (AISI 5115 Type) Steel
Surface Treatment: Case Hardened
Surface Finish Definitions: See Appendix E* -0.5 N
Fit Tolerances: See Appendix F* L -1
Dimensions: Shown in Millimeters (mm)
*See Technical Reference Information at www .dme .net

ITEM L
PREFIX D F G N 020 030 040 050 060 070 080 100 120 140 160 180 200 240 280 300
14 6 11 8
20 8 16 13
26 10 21 13
R05
30 12 25 13
42 16 33 13
54 20 43 13

HOW TO ORDER: Specify Item Number with prefix, D diameter and L length . Include zeros as shown, KEY TO CHART
but omit all spaces (spaces are only shown here for easier reading) . Items in stock Die Components – Euro-Series | Centering Bushing – Locating Sleeve
Prefix D L Example: Example:
R05 Prefix D L Prefix D L 2-3 week delivery
R05 20 040 R05 42 140 Contact D-M-E
for quote

U.S. 800-626-6653 n Canada 800-387-6600 n www.dme.net
