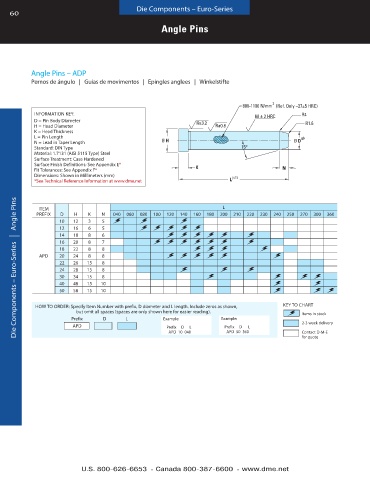

Page 60 - Die Casting Die Assemblies

Die Components – Euro-Series
60

Angle Pins

Angle Pins – ADP
Pernos de ángulo | Guias de movimentos | Epingles anglees | Winkelstifte

800-1100 N/mm 2 (Ref. Only ~27±5 HRC)
INFORMATION KEY: 60 ± 2 HRC R4
D = Pin Body Diameter Ra3.2 R1. 6
H = Head Diameter Ra0.8
K = Head Thickness
L = Pin Length g6
N = Lead in Taper Length Ø H Ø D
Standard: DIN Type 15°
Material: 1 .7131 (AISI 5115 Type) Steel
Surface Treatment: Case Hardened
Surface Finish Definitions: See Appendix E* K
Fit Tolerances: See Appendix F* N
Dimensions: Shown in Millimeters (mm) js15
*See Technical Reference Information at www .dme .net L

Die Components – Euro-Series | Angle Pins
ITEM L
PREFIX D H K N 040 060 080 100 120 140 160 180 200 210 220 230 240 250 270 300 360
10 12 3 5
12 16 6 5
14 18 8 6
16 20 8 7
18 22 8 8
APD 20 24 8 8
22 26 15 8
24 28 15 8
30 34 15 8
40 48 15 10
50 58 15 10

HOW TO ORDER: Specify Item Number with prefix, D diameter and L length . Include zeros as shown, KEY TO CHART
but omit all spaces (spaces are only shown here for easier reading) . Items in stock
Prefix D L Example: Example:
APD Prefix D L Prefix D L 2-3 week delivery
APD 10 040 APD 50 360 Contact D-M-E
for quote

U.S. 800-626-6653 n Canada 800-387-6600 n www.dme.net
