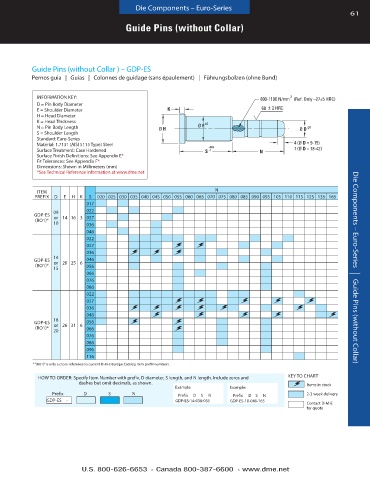

Page 61 - Die Casting Die Assemblies

Die Components – Euro-Series
61
Guide Pins (without Collar)

Guide Pins (without Collar ) – GDP-ES
Pernos guia | Guias | Colonnes de guidage (sans épaulement) | Führungsbolzen (ohne Bund)

INFORMATION KEY: 800-1100 N/mm 2 (Ref. Only ~27±5 HRC)
D = Pin Body Diameter
E = Shoulder Diameter K 60 ± 2 HRC
H = Head Diameter
K = Head Thickness k6
N = Pin Body Length Ø H Ø E Ø D g6
S = Shoulder Length
Standard: Euro-Series
Material: 1 .7131 (AISI 5115 Type) Steel -0.5 4 (Ø D = 9-15)
Surface Treatment: Case Hardened S -1 N 7 (Ø D = 18-42)
Surface Finish Definitions: See Appendix E*
Fit Tolerances: See Appendix F*
Dimensions: Shown in Millimeters (mm)
*See Technical Reference Information at www .dme .net

ITEM N
PREFIX D E H K S 020 025 030 035 040 045 050 055 060 065 070 075 080 085 090 095 105 110 115 125 135 165
017
09 022
GDP-ES or 14 16 3 027
(RO1)*
10 036
046
022
027
036
14
GDP-ES 046
(RO1)* or 20 25 6 056
15 Die Components – Euro-Series | Guide Pins (without Collar)
066
076
086
022
027
036
046
18
GDP-ES 056
(RO1)* or 26 31 6 066
20
076
086
096
116
* “(R01)” is only a cross-reference to current D-M-E Europe Catalog item prefix numbers .

HOW TO ORDER: Specify Item Number with prefix, D diameter, S length, and N length . Include zeros and KEY TO CHART
dashes but omit decimals, as shown . Items in stock
Example: Example:
Prefix D S N Prefix D S N Prefix D S N 2-3 week delivery
GDP-ES - - - GDP-ES-14-036-035 GDP-ES-18-046-165
Contact D-M-E
for quote
