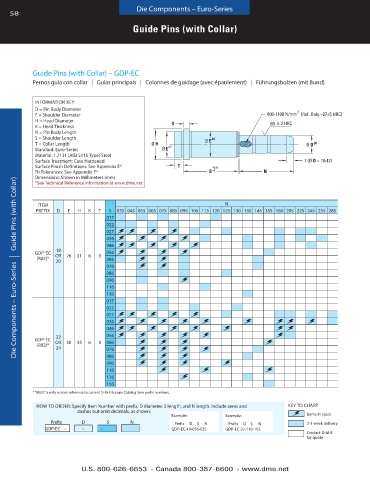

Page 58 - Die Casting Die Assemblies

Die Components – Euro-Series
58

Guide Pins (with Collar)

Guide Pins (with Collar) – GDP-EC
Pernos guia con collar | Guias principais | Colonnes de guidage (avec épaulement) | Führungsbolzen (mit Bund)

INFORMATION KEY:
D = Pin Body Diameter 2
E = Shoulder Diameter 800-1100 N/mm (Ref. Only ~27±5 HRC)
H = Head Diameter K 60 ± 2 HRC
K = Head Thickness
N = Pin Body Length
S = Shoulder Length k6
T = Collar Length Ø H e7 Ø E Ø D g6
Standard: Euro-Series Ø E
Material: 1 .7131 (AISI 5115 Type) Steel
Surface Treatment: Case Hardened 7 (Ø D = 18-42)
Surface Finish Definitions: See Appendix E* T -0.5
Fit Tolerances: See Appendix F* S -1 N
Dimensions: Shown in Millimeters (mm)
Die Components – Euro-Series | Guide Pins (with Collar)
*See Technical Reference Information at www .dme .net

ITEM N
PREFIX D E H K T S 035 045 055 065 075 085 095 105 115 120 125 130 135 145 155 165 205 225 245 255 285
017
022
027
036
046
18
GDP-EC OR 26 31 6 9 056
(R02)* 066
20
076
086
096
116
136
017
022
027
036
046
GDP-EC 22 056
(R02)* OR 30 35 6 9 066
24 076
086
096
116
136
156
* “(R02)” is only a cross-reference to current D-M-E Europe Catalog item prefix numbers .

HOW TO ORDER: Specify Item Number with prefix, D diameter, S length, and N length . Include zeros and KEY TO CHART
dashes but omit decimals, as shown .
Example: Example: Items in stock
Prefix D S N Prefix D S N Prefix D S N 2-3 week delivery
GDP-EC - - - GDP-EC-18-056-035 GDP-EC-22-116-155
Contact D-M-E
for quote
