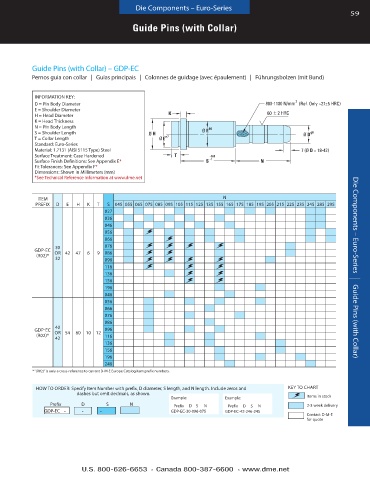

Page 59 - Die Casting Die Assemblies

Die Components – Euro-Series
59
Guide Pins (with Collar)

Guide Pins (with Collar) – GDP-EC
Pernos guia con collar | Guias principais | Colonnes de guidage (avec épaulement) | Führungsbolzen (mit Bund)

INFORMATION KEY:
D = Pin Body Diameter 800-1100 N/mm 2 (Ref. Only ~27±5 HRC)
E = Shoulder Diameter 60 ± 2 HRC
H = Head Diameter K
K = Head Thickness
N = Pin Body Length k6
S = Shoulder Length Ø H Ø E Ø D g6
T = Collar Length Ø E e7
Standard: Euro-Series
Material: 1 .7131 (AISI 5115 Type) Steel 7 (Ø D = 18-42)
Surface Treatment: Case Hardened T -0.5
Surface Finish Definitions: See Appendix E* S -1 N
Fit Tolerances: See Appendix F*
Dimensions: Shown in Millimeters (mm)
*See Technical Reference Information at www .dme .net

ITEM N
PREFIX D E H K T S 045 055 065 075 085 095 105 115 125 135 155 165 175 185 195 205 215 225 235 245 285 295
027
036
046
056
066
30 076
GDP-EC OR 42 47 6 9 086
(R02)* 32 096
116 Die Components – Euro-Series | Guide Pins (with Collar)
136
156
196
046
056
066
076
086
40
GDP-EC OR 54 60 10 12 096
(R02)* 116
42
136
156
196
246
* “(R02)” is only a cross-reference to current D-M-E Europe Catalog item prefix numbers .

HOW TO ORDER: Specify Item Number with prefix, D diameter, S length, and N length . Include zeros and KEY TO CHART
dashes but omit decimals, as shown .
Example: Example: Items in stock
Prefix D S N Prefix D S N Prefix D S N 2-3 week delivery
GDP-EC - - - GDP-EC-30-096-075 GDP-EC-42-246-245
Contact D-M-E
for quote
