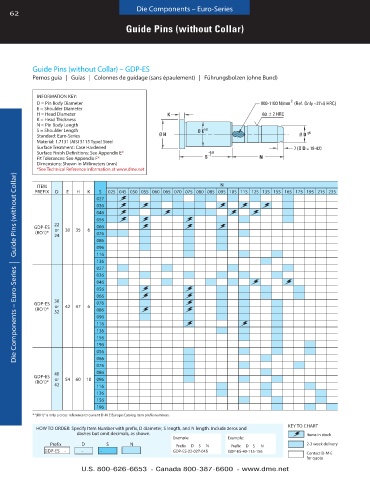

Page 62 - Die Casting Die Assemblies

Die Components – Euro-Series
62

Guide Pins (without Collar)

Guide Pins (without Collar) – GDP-ES
Pernos guia | Guias | Colonnes de guidage (sans épaulement) | Führungsbolzen (ohne Bund)

INFORMATION KEY:
D = Pin Body Diameter 800-1100 N/mm 2 (Ref. Only ~27±5 HRC)
E = Shoulder Diameter
H = Head Diameter K 60 ± 2 HRC
K = Head Thickness
N = Pin Body Length

S = Shoulder Length Ø E k6 g6
Standard: Euro-Series Ø H Ø D
Material: 1 .7131 (AISI 5115 Type) Steel
Surface Treatment: Case Hardened 7 (Ø D = 18-42)
Surface Finish Definitions: See Appendix E* -0.5
-1
Fit Tolerances: See Appendix F* S N
Dimensions: Shown in Millimeters (mm)
*See Technical Reference Information at www .dme .net
Die Components – Euro-Series | Guide Pins (without Collar)
ITEM N
PREFIX D E H K S 025 045 050 055 060 065 070 075 080 085 095 105 115 125 135 155 165 175 195 215 235
027
036
046
056
22
GDP-ES 066
(RO1)* or 30 35 6 076
24
086
096
116
136
027
036
046
056
066
30
GDP-ES 076
(RO1)* or 42 47 6 086
32
096
116
136
156
196
056
066
076
GDP-ES 40 086
(RO1)* or 54 60 10 096
42 116
136
156
196
* “(R01)” is only a cross-reference to current D-M-E Europe Catalog item prefix numbers .
KEY TO CHART
HOW TO ORDER: Specify Item Number with prefix, D diameter, S length, and N length . Include zeros and
dashes but omit decimals, as shown . Items in stock
Example: Example:
Prefix D S N Prefix D S N Prefix D S N 2-3 week delivery
GDP-ES - - - GDP-ES-22-027-045 GDP-ES-40-115-156 Contact D-M-E
for quote
