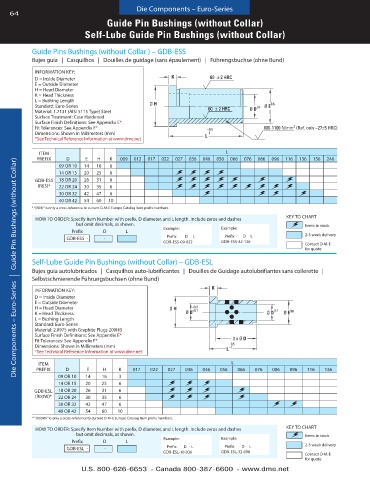

Page 64 - Die Casting Die Assemblies

Die Components – Euro-Series
64
Guide Pin Bushings (without Collar)
Self-Lube Guide Pin Bushings (without Collar)

Guide Pins Bushings (without Collar ) – GDB-ESS
Bujes guia | Casquilhos | Douilles de guidage (sans épaulement) | Führengsbuchse (ohne Bund)
INFORMATION KEY:
D = Inside Diameter K 60 ± 2 HRC
E = Outside Diameter
H = Head Diameter
K = Head Thickness
L = Bushing Length
Standard: Euro-Series Ø H 60 ± 2 HRC H7 Ø E k6
Material: 1 .7131 (AISI 5115 Type) Steel Ø D
Surface Treatment: Case Hardened
Surface Finish Definitions: See Appendix E*
2
Fit Tolerances: See Appendix F* –0.5 800-1100 N/mm (Ref. only ~27±5 HRC)
Dimensions: Shown in Millimeters (mm) –1
*See Technical Reference Information at www .dme .net L
ITEM L
PREFIX D E H K 009 012 017 022 027 036 046 056 066 076 086 096 116 136 156 246
Die Components – Euro-Series | Guide Pin Bushings (without Collar)
09 OR 10 14 16 6
14 OR 15 20 25 6
GDB-ESS 18 OR 20 26 31 6
(R03)* 22 OR 24 30 35 6
30 OR 32 42 47 6
40 OR 42 54 60 10
* “(R03)” is only a cross-reference to current D-M-E Europe Catalog item prefix numbers .
HOW TO ORDER: Specify Item Number with prefix, D diameter, and L length . Include zeros and dashes KEY TO CHART
but omit decimals, as shown . Items in stock
Prefix D L Example: Example:
GDB-ESS - - Prefix D L Prefix D L 2-3 week delivery
GDB-ESS-09-022 GDB-ESS-32-136
Contact D-M-E
for quote
Self-Lube Guide Pin Bushings (without Collar) – GDB-ESL
Bujes guia autolubricados | Casquilhos auto-lubrificantes | Douilles de Guidage autolubrifiantes sans collerette |
Selbstschmierende Führungsbuchsen (ohne Bund)
INFORMATION KEY: K
D = Inside Diameter
E = Outside Diameter
H = Head Diameter Ø H +0.3
+0.1
K = Head Thickness Ø D Ø D H7 Ø E k6
L = Bushing Length
Standard: Euro-Series
Material: 2 .0975 with Graphite Plugs 200HB
Surface Finish Definitions: See Appendix E*
Fit Tolerances: See Appendix F* 3 x Ø D
Dimensions: Shown in Millimeters (mm) –0.5
–1
*See Technical Reference Information at www .dme .net L
ITEM L
PREFIX D E H K 017 022 027 036 046 056 066 076 086 096 116 136
09 OR 10 14 16 3
14 OR 15 20 25 6
GDB-ESL 18 OR 20 26 31 6
(R03W)* 22 OR 24 30 35 6
30 OR 32 42 47 6
40 OR 42 54 60 10
* “(R03W)” is only a cross-reference to current D-M-E Europe Catalog item prefix numbers .
HOW TO ORDER: Specify Item Number with prefix, D diameter, and L length . Include zeros and dashes KEY TO CHART
but omit decimals, as shown . Items in stock
Prefix D L Example: Example:
GDB-ESL - - Prefix D L Prefix D L 2-3 week delivery
GDB-ESL-10-036 GDB-ESL-32-096
Contact D-M-E
for quote
U.S. 800-626-6653 n Canada 800-387-6600 n www.dme.net
