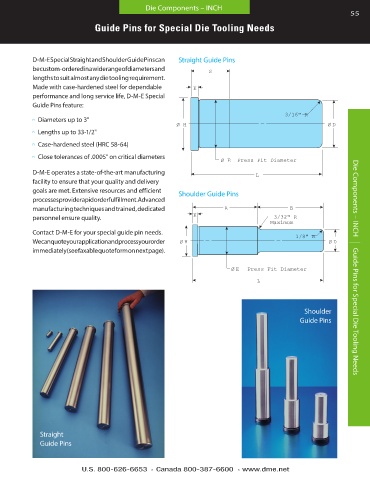

Page 55 - Die Casting Die Assemblies

Die Components – INCH
55
Guide Pins for Special Die Tooling Needs

D-M-E Special Straight and Shoulder Guide Pins can Straight Guide Pins
be custom-ordered in a wide range of diameters and
S
lengths to suit almost any die tooling requirement .
Made with case-hardened steel for dependable K
performance and long service life, D-M-E Special
Guide Pins feature:
3/16" R
n Diameters up to 3"
Ø H Ø D
n Lengths up to 33-1/2"
n Case-hardened steel (HRC 58-64)

n Close tolerances of .0005" on critical diameters
Ø E Press Fit Diameter
D-M-E operates a state-of-the-art manufacturing
L
facility to ensure that your quality and delivery
goals are met . Extensive resources and efficient Shoulder Guide Pins
processes provide rapid order fulfillment . Advanced
manufacturing techniques and trained, dedicated A B
personnel ensure quality . K 3/32" R
Maximum
Contact D-M-E for your special guide pin needs .
1/8" R
We can quote your application and process your order Ø H Ø D
immediately (see faxable quote form on next page) .

Ø E Press Fit Diameter Die Components – INCH | Guide Pins for Special Die Tooling Needs

L

Shoulder
Guide Pins

Straight
Guide Pins

U.S. 800-626-6653 n Canada 800-387-6600 n www.dme.net
