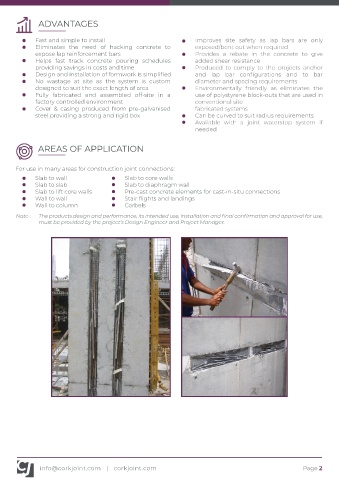

ADVANTAGES

Fast and simple to install Improves site safety as lap bars are only

Eliminates the need of hacking concrete to exposed/bent out when required

expose lap reinforcement bars Provides a rebate in the concrete to give

Helps fast track concrete pouring schedules added shear resistance

providing savings in costs and time Produced to comply to the projects anchor
Design and installation of formwork is simplified and lap bar configurations and to bar

No wastage at site as the system is custom diameter and spacing requirements

designed to suit the exact length of area Environmentally friendly as eliminates the
Fully fabricated and assembled off-site in a use of polystyrene block-outs that are used in
factory controlled environment conventional site
Cover & casing produced from pre-galvanised fabricated systems
steel providing a strong and rigid box Can be curved to suit radius requirements
Available with a joint waterstop system if
needed

AREAS OF APPLICATION

For use in many areas for construction joint connections:
Slab to wall Slab to core walls
Slab to slab Slab to diaphragm wall
Slab to lift core walls Pre-cast concrete elements for cast-in-situ connections
Wall to wall Stair flights and landings
Wall to column Corbels

Note : The products design and performance, its intended use, installation and final confirmation and approval for use,
must be provided by the project’s Design Engineer and Project Manager.
