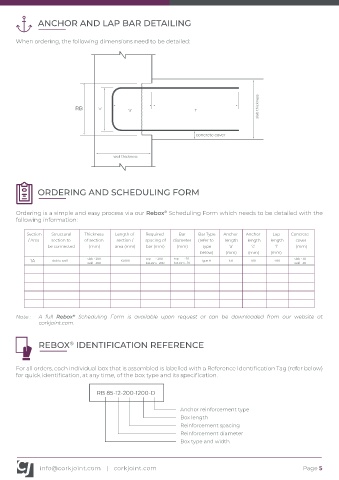

ANCHOR AND LAP BAR DETAILING

When ordering, the following dimensions need to be detailed:

slab thickness
RB ‘c’ ‘a’ ‘l’

concrete cover

wall thickness

ORDERING AND SCHEDULING FORM

Ordering is a simple and easy process via our Rebox Scheduling Form which needs to be detailed with the
®
following information:

Section Structural Thickness Length of Required Bar Bar Type Anchor Anchor Lap Concrete
/ Area section to of section section / spacing of diameter (refer to length length length cover
be connected (mm) area (mm) bar (mm) (mm) type ‘a’ ‘c’ ‘l’ (mm)
below) (mm) (mm) (mm)
1A slab to wall slab - 200 10,000 top - 200 top - 10 Type B 150 100 480 slab - 30
wall - 300 bottom - 200 bottom - 10 wall - 30

Note : A full Rebox Scheduling Form is available upon request or can be downloaded from our website at
®
corkjoint.com.

REBOX IDENTIFICATION REFERENCE
®

For all orders, each individual box that is assembled is labelled with a Reference Identification Tag (refer below)
for quick identification, at any time, of the box type and its specification.

RB 85-12-200-1200-D

Anchor reinforcement type
Box length
Reinforcement spacing
Reinforcement diameter
Box type and width
