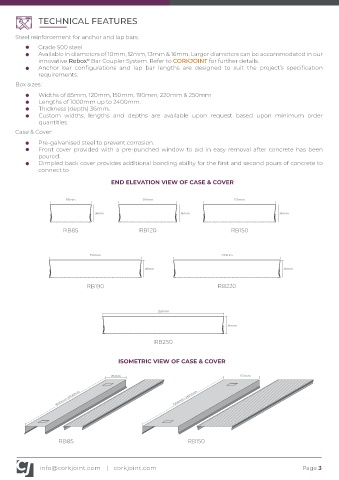

TECHNICAL FEATURES

Steel reinforcement for anchor and lap bars:

Grade 500 steel
Available in diameters of 10mm, 12mm, 13mm & 16mm. Larger diameters can be accommodated in our
innovative Rebox Bar Coupler System. Refer to CORKJOINT for further details.
®
Anchor bar configurations and lap bar lengths are designed to suit the project’s specification
requirements.
Box sizes:
Widths of 85mm, 120mm, 150mm, 190mm, 220mm & 250mm
Lengths of 1000mm up to 2400mm.
Thickness (depth) 36mm.
Custom widths, lengths and depths are available upon request based upon minimum order
quantities.
Case & Cover:
Pre-galvanised steel to prevent corrosion.
Front cover provided with a pre-punched window to aid in easy removal after concrete has been
poured.
Dimpled back cover provides additional bonding ability for the first and second pours of concrete to
connect to.

END ELEVATION VIEW OF CASE & COVER

85mm 120mm 150mm

36mm 36mm 36mm

RB85 RB120 RB150

190mm 220mm
36mm 36mm

RB190 RB220

250mm

36mm

RB250

ISOMETRIC VIEW OF CASE & COVER

85mm 150mm

1000mm~2400mm 1000mm~2400mm

RB85 RB150
