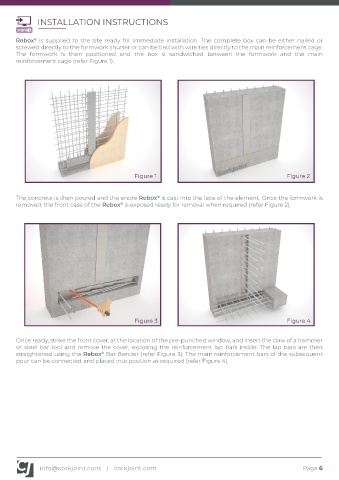

INSTALLATION INSTRUCTIONS
Rebox is supplied to the site ready for immediate installation. The complete box can be either nailed or
®
screwed directly to the formwork shutter or can be tied with wire ties directly to the main reinforcement cage.
The formwork is then positioned and the box is sandwiched between the formwork and the main
reinforcement cage (refer Figure 1).
Figure 1 Figure 2
The concrete is then poured and the entire Rebox is cast into the face of the element. Once the formwork is
®
removed, the front case of the Rebox is exposed ready for removal when required (refer Figure 2).
®
Figure 3 Figure 4
Once ready, strike the front cover, at the location of the pre-punched window, and insert the claw of a hammer
or steel bar tool and remove the cover, exposing the reinforcement lap bars inside. The lap bars are then
straightened using the Rebox Bar Bender (refer Figure 3). The main reinforcement bars of the subsequent
®
pour can be connected and placed into position as required (refer Figure 4).
