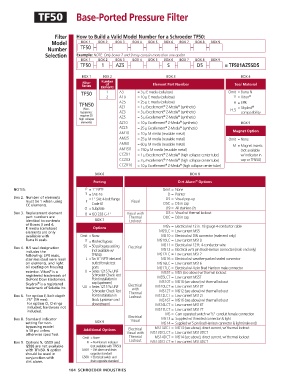

Page 106 - Schroeder - Hydraulic And Lube Filtration

TF50 Base-Ported Pressure Fil ter

Filter How to Build a Valid Model Number for a Schroeder TF50:
Model BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9
Number TF50 – – – – – – – –
Selection Example: NOTE: Only boxes 7 and 9 may contain more than one option
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9
TF50 – 1 – AZ5 – – – S – – D5 – = TF501AZ5SD5

BOX 1 BOX 2 BOX 3 BOX 4
Filter Number
of
Series Elements Element Part Number Seal Material
TF50 1 A3 = 3 µ E media (cellulose) Omit = Buna N
2 A10 = 10 µ E media (cellulose) V = Viton ®
A25 = 25 µ E media (cellulose) H = EPR
TFN50 ® ® ®
(Non- AZ1 = 1 µ Excellement Z-Media (synthetic) H.5 = Skydrol
®
®
bypassing: AZ3 = 3 µ Excellement Z-Media (synthetic) compatibility
requires ZX ® ®
high collapse AZ5 = 5 µ Excellement Z-Media (synthetic)
elements) AZ10 = 10 µ Excellement Z-Media (synthetic) BOX 5
®
®
AZ25 = 25 µ Excellement Z-Media (synthetic)
®
®
AM10 = 10 µ M media (reusable metal) Magnet Option
AM25 = 25 µ M media (reusable metal) Omit = None
AM60 = 60 µ M media (reusable metal) M = Magnet inserts
AM150 = 150 µ M media (reusable metal) (not available
CCZX1 = 1 µ Excellement Z-Media (high collapse center tube) w/ indicator in
®
®
CCZX3 = 3 µ Excellement Z-Media (high collapse center tube) cap or TFN50)
®
®
CCZX10 = 10 µ Excellement Z-Media (high collapse center tube)
®
®
BOX 6 BOX 8
®
Porting Dirt Alarm Options
NOTES: P = 1" NPTF Omit = None
S = SAE-16 D = Pointer
Box 2. Number of elements = 1" SAE 4-bolt flange D5 = Visual pop-up
must be 1 when using F Visual D5C = D5 in cap
CC elements. Code 61
O = Subplate D9 = All stainless D5
Box 3. Replacement element B = ISO 228 G-1" Visual with D8 = Visual w/ thermal lockout
part numbers are Thermal D8C = D8 in cap
identical to contents BOX 7 Lockout
of Boxes 3 and 4. MS5 = Electrical w/ 12 in. 18 gauge 4-conductor cable
E media (cellulose) Options
elements are only MS5LC = Low current MS5
available with Omit = None MS10 = Electrical w/ DIN connector (male end only)
Buna N seals. X = Blocked bypass MS10LC = Low current MS10
Box 4. H.5 seal designation 50 = 50 psi bypass setting Electrical MS11 = Electrical w/ 12 ft. 4-conductor wire
MS12 = Electrical w/ 5 pin Brad Harrison connector (male end only)
includes the (not available w/
following: EPR seals, TFN50) MS12LC = Low current MS12
1
stainless steel wire mesh L = Tw ⁄4" NPTF inlet and MS16 = Electrical w/ weather-packed sealed connector
on elements, and light outlet female test MS16LC = Low current MS16
oil coating on housing ports MS17LC = Electrical w/ 4 pin Brad Harrison male connector
7
exterior. Viton is a U = Series 1215 ⁄16 UNF MS5T = MS5 (see above) w/ thermal lockout
®
registered trademark of Schroeder Check Test MS5LCT = Low current MS5T
DuPont Dow Elastomers. Point installation in
®
Skydrol is a registered cap (upstream) Electrical MS10T = MS10 (see above) w/ thermal lockout
7
trade mark of Solutia Inc. UU = Series 1215 ⁄16 UNF with MS10LCT = Low current MS10T
Schroeder Check Test Thermal MS12T = MS12 (see above) w/ thermal lockout
Box 6. For option F, bolt depth Point installation in Lockout MS12LCT = Low current MS12T
.75” (19 mm). block (upstream and MS16T = MS16 (see above) w/ thermal lockout
For option O, O-rings downstream) MS16LCT = Low current MS16T
included; hardware not MS17LCT = Low current MS17T
included. 1
Electrical MS = Cam operated switch w/ ⁄2" conduit female connection
Box 8. Standard indicator Visual MS13 = Supplied w/ threaded connector & light
setting for non- BOX 9 MS14 = Supplied w/ 5 pin Brad Harrison connector & light (male end)
bypassing model MS13DCT = MS13 (see above), direct current, w/ thermal lockout
is 50 psi unless Additional Options Electrical MS13DCLCT = Low current MS13DCT
otherwise specified. Visual with
Omit = None Thermal MS14DCT = MS14 (see above), direct current, w/ thermal lockout
Box 9. Options N, G509 and N = No-Element indicator Lockout MS14DCLCT = Low current MS14DCT
G588 are not available (not available with TFN50)
with TFN50. N option G509 = Dirt alarm and drain
should be used in opposite standard
conjunction with G588 = Electrical switch and
dirt alarm. drain opposite standard
104 SCHROEDER INDUSTRIES
