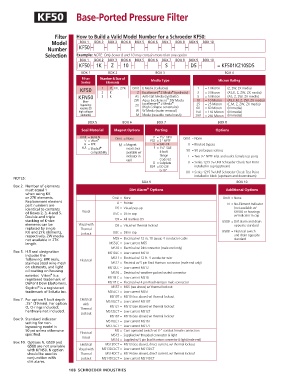

Page 110 - Schroeder - Hydraulic And Lube Filtration

KF50 Base-Ported Pressure Fil ter

Filter How to Build a Valid Model Number for a Schroeder KF50:
Model BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9 BOX 10
Number KF50 – – – – – – – – –
Selection Example: NOTE: Only boxes 8 and 10 may contain more than one option
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9 BOX 10
KF50 – 1K – Z – 10 – – – S – – D5 – = KF501KZ10SD5
BOX 1 BOX 2 BOX 3 BOX 4
Filter Number & Size of
Series Elements Media Type MIcron Rating
KF50 1 2 K K, KK, 27K Omit Z E Media (Cellulose) ® 1 3 = 1 Micron (Z, ZW, ZX media)
= 3 Micron
®
(AS,E, Z, ZW, ZX media)
Excellement Z-Media (synthetic)
KFN50 3 K AS Anti-Stat Media (synthetic) 5 = 5 Micron (AS, Z, ZW, ZX media)
™
(Non- ZW Aqua-Excellement ZW Media 10 = 10 Micron (AS,E,M, Z, ZW, ZX media)
®
®
bypassing: ZX Excellement Z-Media 25 = 25 Micron (E,M, Z, ZW, ZX media)
requires ZX (High Collapse centertube) 60 = 60 Micron (M media)
high collapse W W Media (water removal) 150 = 150 Micron (M media)
elements) M Media (reusable metal mesh) 260 = 260 Micron (M media)
BOX 5 BOX 6 BOX 7 BOX 8
Seal Material Magnet Options Porting Options
Omit = Buna N Omit = None P = 1 ⁄2" NPTF Omit = None
1
V = Viton ® P32 = 2" NPTF
H = EPR M = Magnet S = SAE-24 X = Blocked bypass
1
®
H.5 = Skydrol inserts (not F = 1 ⁄2" SAE
compatibility available w/ 4-bolt 50 = 50 psi bypass setting
indicator in flange L = Two ⁄4" NPTF inlet and outlet female test ports
1
cap) Code 62
O = Subplate U = Series 1215 ⁄16 UNF Schroeder Check Test Point
7
B24 = ISO 228 installed in cap (upstream)
1
G-1 ⁄2"
UU = Series 1215 ⁄16 UNF Schroeder Check Test Point
7
installed in block (upstream and downstream)
NOTES:
BOX 9 BOX 10
Box 2. Number of elements
®
must equal 1 Dirt Alarm Options Additional Options
when using KK
or 27K elements. Omit = None Omit = None
Replacement element D = Pointer
part numbers are N = No-Element Indicator
identical to contents D5 = Visual pop-up (not available w/
of Boxes 2, 3, 4 and 5. Visual D5C = D5 in cap KFN50 or housings
Double and triple w/ indicator in cap
stacking of K-size D9 = All stainless D5 G509 = Dirt alarm and drain
elements can be Visual with D8 = Visual w/ thermal lockout opposite standard
replaced by single Thermal
KK and 27K elements, Lockout D8C = D8 in cap G588 = Electrical switch
respectively. ZW media and drain opposite
not available in 27K MS5 = Electrical w/ 12 in. 18 gauge 4-conductor cable standard
length. MS5LC = Low current MS5
MS10 = Electrical w/ DIN connector (male end only)
Box 5. H.5 seal designation MS10LC = Low current MS10
includes the
following: EPR seals, Electrical MS11 = Electrical w/ 12 ft. 4-conductor wire
stainless steel wire mesh MS12 = Electrical w/ 5 pin Brad Harrison connector (male end only)
on elements, and light MS12LC = Low current MS12
oil coating on housing MS16 = Electrical w/ weather-packed sealed connector
®
exterior. Viton is a MS16LC = Low current MS16
registered trademark of
DuPont Dow Elastomers. MS17LC = Electrical w/ 4 pin Brad Harrison male connector
Skydrol is a registered MS5T = MS5 (see above) w/ thermal lockout
®
trade mark of Solutia Inc. MS5LCT = Low current MS5T
MS10T = MS10 (see above) w/ thermal lockout
Box 7. For option F, bolt depth Electrical MS10LCT = Low current MS10T
.75" (19 mm). For option with
O, O-rings included; Thermal MS12T = MS12 (see above) w/ thermal lockout
hardware not included. MS12LCT = Low current MS12T
Lockout
MS16T = MS16 (see above) w/ thermal lockout
Box 9. Standard indicator
setting for non- MS16LCT = Low current MS16T
bypassing model is MS17LCT = Low current MS17T
50 psi unless otherwise MS = Cam operated switch w/ ½" conduit female connection
specified. Electrical MS13 = Supplied w/ threaded connector & light
Visual MS14 = Supplied w/ 5 pin Brad Harrison connector & light (male end)
Box 10. Options N, G509 and Electrical MS13DCT = MS13 (see above), direct current, w/ thermal lockout
G588 are not available
with KFN50. N option Visual with MS13DCLCT = Low current MS13DCT
should be used in Thermal MS14DCT = MS14 (see above), direct current, w/ thermal lockout
conjunction with Lockout MS14DCLCT = Low current MS14DCT
dirt alarm.
