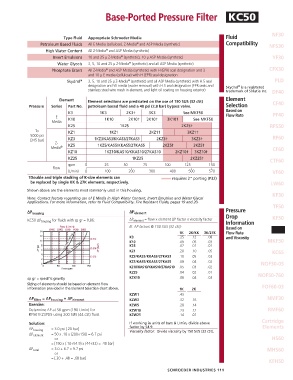

Page 113 - Schroeder - Hydraulic And Lube Filtration

Base-Ported Pres sure Filter KC50

Type Fluid Appropriate Schroeder Media Fluid NF30
Petroleum Based Fluids All E Media (cellulose), Z-Media and ASP Media (synthetic) Compatibility NFS30
®
®
High Water Content All Z-Media and ASP Media (synthetic)
Invert Emulsions 10 and 25 µ Z-Media (synthetic), 10 µ ASP Media (synthetic) YF30
®
Water Glycols 3, 5, 10 and 25 µ Z-Media (synthetic) and all ASP Media (synthetic)
®
®
Phosphate Esters All Z-Media and ASP Media (synthetic) with H (EPR) seal designation and 3 CFX30
and 10 µ E media (cellulose) with H (EPR) seal designation
®
Skydrol ® 3, 5, 10 and 25 µ Z-Media (synthetic) and all ASP Media (synthetic) with H.5 seal PLD
designation and W media (water removal) with H.5 seal designation (EPR seals and Skydrol is a registered
®
stainless steel wire mesh in element, and light oil coating on housing exterior) trademark of Solutia Inc. DF40
Element Element selections are predicated on the use of 150 SUS (32 cSt) Element CF40
Pressure Series Part No. petroleum based fluid and a 40 psi (2.8 bar) bypass valve. Selection
Based on
K3 1K3 2K3† 3K3 See MKF50 PF40
E K10 1K10 2K10† 3K10† 3K10† See MKF50 Flow Rate
Media
K25 1K25 2K25† RFS50
To KZ1 1KZ1 2KZ1† 3KZ1†
5000 psi RF60
(345 bar) KZ3 1KZ3/KAS3/KKAS3/27KAS3 2KZ3† 3KZ3†
Z-
Media ® KZ5 1KZ5/KAS5/KKAS5/27KAS5 2KZ5† 3KZ5† CF60
KZ10 1KZ10/KAS10/KKAS10/27KAS10 2KZ10† 3KZ10†
KZ25 1KZ25 2KZ25† CTF60
gpm 0 25 50 75 100 125 150
Flow
(L/min) 0 100 200 300 400 500 570 VF60
† Double and triple stacking of K-size elements can requires 2" porting (P32)
be replaced by single KK & 27K elements, respectively. LW60
Shown above are the elements most commonly used in this housing.
KF30
Note: Contact factory regarding use of E Media in High Water Content, Invert Emulsion and Water Glycol
Applications. For more information, refer to Fluid Compatibility: Fire Resistant Fluids, pages 19 and 20.
TF50
∆P housing ∆P element Pressure
KC50 ∆P housing for fluids with sp gr = 0.86: ∆P element = flow x element ∆P factor x viscosity factor Drop KF50
Information
El. ∆P factors @ 150 SUS (32 cSt): Based on KC50
1K 2K/KK 3K/27K Flow Rate
K3 .25 .12 .08 and Viscosity
K10 .09 .05 .03 MKF50
K25 .02 .01 .01
KZ1 .20 .10 .05 KC65
KZ3/KAS3/KKAS3/27KAS3 .10 .05 .03
KZ5/KAS5/KKAS5/27KAS5 .08 .04 .02 NOF30-05
KZ10/KAS10/KKAS10/27KAS10 .05 .03 .02
KZ25 .04 .02 .01 NOF50-760
sp gr = specific gravity KZX10 .08 .04 .03
Sizing of elements should be based on element flow
information provided in the Element Selection chart above. 1K 2K FOF60-03
KZW1 .43
∆P filter = ∆P housing + ∆P element KZW3 .32 .16 NMF30
Exercise: KZW5 .28 .14
Determine ∆P at 50 gpm (190 L/min) for KZW10 .23 .12 RMF60
KF501KZ3PD5 using 200 SUS (44 cSt) fluid. KZW25 .14 .07
Cartridge
Solution: If working in units of bars & L/min, divide above
∆P housing = 3.0 psi [.20 bar] factor by 54.9. Elements
Viscosity factor: Divide viscosity by 150 SUS (32 cSt).
∆P element = 50 x .10 x (200÷150) = 6.7 psi
or HS60
= [190 x (.10÷54.9) x (44÷32) = .48 bar]
∆P total = 3.0 + 6.7 = 9.7 psi MHS60
or
= [.20 + .48 = .68 bar]
KFH50
SCHROEDER INDUSTRIES 111
