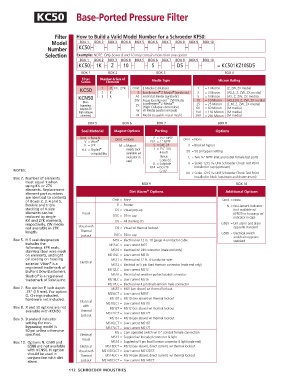

KC50 Base-Ported Pressure Fil ter

Filter How to Build a Valid Model Number for a Schroeder KF50:
Model BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9 BOX 10
Number KC50 – – – – – – – – –
Selection Example: NOTE: Only boxes 8 and 10 may contain more than one option
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9 BOX 10
KC50 – 1K – Z – 10 – – S – – D5 – – = KC501KZ10SD5
BOX 1 BOX 2 BOX 3 BOX 4
Filter Number & Size of
Series Elements Media Type MIcron Rating
KC50 1 2 K K, KK, 27K Omit Z E Media (Cellulose) ® 1 3 = 1 Micron (Z, ZW, ZX media)
®
= 3 Micron
Excellement Z-Media (synthetic)
(AS,E, Z, ZW, ZX media)
KCN50 3 K AS Anti-Stat Media (synthetic) 5 = 5 Micron (AS, Z, ZW, ZX media)
™
(Non- ZW Aqua-Excellement ZW Media 10 = 10 Micron (AS,E,M, Z, ZW, ZX media)
®
®
Excellement Z-Media
bypassing: ZX (High Collapse centertube) 25 = 25 Micron (E,M, Z, ZW, ZX media)
requires ZX W W Media (water removal) 60 = 60 Micron (M media)
high collapse 150 = 150 Micron (M media)
elements) M Media (reusable metal mesh) 260 = 260 Micron (M media)
BOX 5 BOX 6 BOX 7 BOX 8
Seal Material Magnet Options Porting Options
1
Omit = Buna N Omit = None P = 1 ⁄2" NPTF Omit = None
V = Viton ® P32 = 2" NPTF
H = EPR M = Magnet S = SAE-24 X = Blocked bypass
1
®
H.5 = Skydrol inserts (not F = 1 ⁄2" SAE 50 = 50 psi bypass setting
compatibility available w/ 4-bolt
indicator in flange L = Two ⁄4" NPTF inlet and outlet female test ports
1
cap) Code 62
O = Subplate U = Series 1215 ⁄16 UNF Schroeder Check Test Point
7
B24 = ISO 228 installed in cap (upstream)
NOTES: G-1 ⁄2"
1
UU = Series 1215 ⁄16 UNF Schroeder Check Test Point
7
Box 2. Number of elements installed in block (upstream and downstream)
must equal 1 when BOX 9 BOX 10
using KK or 27K
elements. Replacement Dirt Alarm Options Additional Options
®
element part numbers
are identical to contents
of Boxes 2, 3, 4 and 5. Omit = None Omit = None
Double and triple D = Pointer N = No-Element Indicator
stacking of K-size D5 = Visual pop-up (not available w/
elements can be Visual KFN30 or housings w/
replaced by single D5C = D5 in cap indicator in cap)
KK and 27K elements, D9 = All stainless D5
respectively. ZW media Visual with G509 = Dirt alarm and drain
not available in 27K D8 = Visual w/ thermal lockout opposite standard
length. Thermal G588 = Electrical switch
Lockout D8C= D8 in cap and drain opposite
Box 5. H.5 seal designation MS5 = Electrical w/ 12 in. 18 gauge 4-conductor cable standard
includes the MS5LC = Low current MS5
following: EPR seals,
stainless steel wire mesh MS10 = Electrical w/ DIN connector (male end only)
on elements, and light MS10LC = Low current MS10
oil coating on housing MS11 = Electrical w/ 12 ft. 4-conductor wire
®
exterior. Viton is a Electrical MS12 = Electrical w/ 5 pin Brad Harrison connector (male end only)
registered trademark of MS12LC = Low current MS12
DuPont Dow Elastomers.
®
Skydrol is a registered MS16 = Electrical w/ weather-packed sealed connector
trade mark of Solutia Inc. MS16LC = Low current MS16
MS17LC = Electrical w/ 4 pin Brad Harrison male connector
Box 7. For option F, bolt depth MS5T = MS5 (see above) w/ thermal lockout
.75" (19 mm). For option MS5LCT = Low current MS5T
O, O-rings included;
hardware not included. Electrical MS10T = MS10 (see above) w/ thermal lockout
Box 8. X and 50 options are not with MS10LCT = Low current MS10T
MS12T = MS12 (see above) w/ thermal lockout
available with KCN50. Thermal MS12LCT = Low current MS12T
Lockout
Box 9. Standard indicator MS16T = MS16 (see above) w/ thermal lockout
setting for non- MS16LCT = Low current MS16T
bypassing model is MS17LCT = Low current MS17T
50 psi unless otherwise MS = Cam operated switch w/ ½" conduit female connection
specified. Electrical
Visual MS13 = Supplied w/ threaded connector & light
Box 10. Options N, G509 and MS14 = Supplied w/ 5 pin Brad Harrison connector & light (male end)
G588 are not available Electrical MS13DCT = MS13 (see above), direct current, w/ thermal lockout
with KCN50. N option Visual with MS13DCLCT = Low current MS13DCT
should be used in Thermal MS14DCT = MS14 (see above), direct current, w/ thermal lockout
conjunction with dirt
alarm. Lockout MS14DCLCT = Low current MS14DCT
