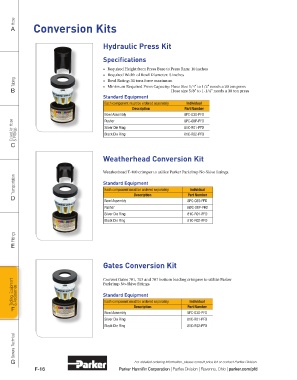

Page 340 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose
A Conversion Kits

Hydraulic Press Kit

Specifications

• Required Height from Press Base to Press Ram: 10 inches
• Required Width of Bowl Diameter: 5 inches
Tubing • Bowl Rating: 30 tons force maximum
B • Minimum Required Press Capacity: Hose Size 1/4" to 1/2" needs a 20 ton press
Hose size 5/8" to 1-1/4" needs a 30 ton press
Standard Equipment
Each component must be ordered separately Individual
Description Part Number
Bowl Assembly 8PC-030-PFD
Coiled Air Hose & Fittings Silver Die Ring 81C-R01-PFD
8PC-00P-PFD
Pusher
81C-R02-PFD
Black Die Ring
C

Weatherhead Conversion Kit

Weatherhead T-400 crimper to utilize Parker Parkrimp No-Skive fittings.
Transportation Standard Equipment Individual

Each component must be ordered separately
D Description Part Number
Bowl Assembly 8PC-030-PFD
Pusher 8WC-00P-PFD
Silver Die Ring 81C-R01-PFD
Black Die Ring 81C-R02-PFD

Fittings
E

Gates Conversion Kit

Tooling, Equipment & Accessories Convert Gates 701, 703 and 707 bottom loading crimpers to utilize Parker
Parkrimp No-Skive fittings.

Standard Equipment
Individual
Description
F Each component must be ordered separately Part Number
Bowl Assembly 8PC-030-PFD
Silver Die Ring 81C-R01-PFD
Black Die Ring 81C-R02-PFD

General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
F-16 Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd
