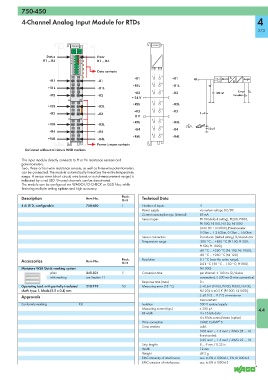

750-450

4-Channel Analog Input Module for RTDs 4

273

750-450
750-450
13 14
Status 1 5 Error
2 6
R1 ... R4 3 7 R1 ... R4
4 8
Data contacts
1 9
+R1 –R1 AI MUX Logic
+R1 ‒R1
2 10
+R1L –R1L
+R1L ‒R1L
3 11 Error
+R2 –R2 100 nF
+R2 ‒R2 Function
+ 24 V
4 12
+R2L –R2L
+R2L ‒R2L
5 13
+R3 –R3
+R3 ‒R3 1 nF
0 V
6 14
+R3L –R3L
+R3L ‒R3L
7 15
+R4 –R4 10 nF
+R4 ‒R4
8 16
+R4L –R4L
+R4L ‒R4L
Power jumper contacts
Delivered without miniature WSB markers
This input module directly connects to Pt or Ni resistance sensors and
potentiometers.
Two-, three- or four-wire resistance sensors, as well as three-wire potentiometers
can be connected. The module automatically linearizes the entire temperature
range. A sensor error (short circuit, wire break or out-of-measurement range) is
indicated by a red LED. Unused channels can be deactivated.
The module can be configured via WAGO-I/O-CHECK or GSD files, while
featuring multiple setting options and high accuracy.
Description Item No. Pack. Technical Data
Unit
4 AI RTD, configurable 750-450 1 Number of inputs 4
Power supply via system voltage DC/DC
Current consumption typ. (internal) 85 mA
Sensor types Pt100 (default setting), Pt200, Pt500,
Pt1000, Ni100, Ni120, Ni1000
(TK6180 + TK5000), Potentiometer
0 Ohm ... 1.2 kOhm, 0 Ohm ... 5 kOhm
Sensor connection 2-conductor (default setting), 3-/4-conductor
Temperature range -200 °C ... +850 °C (Pt 100, Pt 200,
Pt 500, Pt 1000),
-60 °C ... +250 °C (Ni 100, Ni 1000),
-80 °C ... +260 °C (Ni 120)
Accessories Item No. Pack. Resolution 0.1 °C (over the entire range),
Unit 0.01 °C (-50 °C ... 150 °C; Pt1000,
Miniature WSB Quick marking system Ni1000)
plain 248-501 5 Conversion time per channel: ≤ 100 ms (2-/4-wire
with marking see Section 11 connection), ≤ 200 ms (3-wire connection)
Response time (max.) 3 s
Operating tool, with partially insulated 210-719 50 Measuring error (25 °C) ≤ ±0.6 K (Pt100, Pt200, Pt500, Ni100,
shaft, type 1, blade (2.5 x 0.4) mm Ni120); ≤ ±0.2 K (Pt1000, Ni1000);
Approvals ≤ ±0.3 Ω ... 0.7 Ω at resistance
measurement
Conformity marking 1 Isolation 500 V system/supply
Measuring current (typ.) ≤ 350 μA 4.4
Bit width 4 x 16 bits data
4 x 8 bits control/status (option)
®
Wire connection CAGE CLAMP S
Cross sections solid:
0.08 mm² ... 1.5 mm² / AWG 28 ... 16
fine-stranded:
0.25 mm² ... 1.5 mm² / AWG 22 ... 16
Strip lengths 8 ... 9 mm / 0.33 in
Width 12 mm
Weight 49.2 g
EMC immunity of interference acc. to EN 61000-6-1, EN 61000-6-2
EMC emission of interference acc. to EN 61000-6-3
