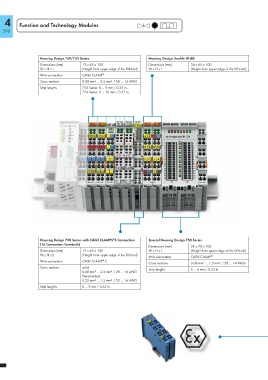

4 Function and Technology Modules

290

Housing Design 750/753 Series Housing Design Double Width
Dimensions (mm) 12 x 65 x 100 Dimensions (mm) 24 x 65 x 100
W x H x L (Height from upper edge of the DIN-rail) W x H x L (Height from upper edge of the DIN-rail)
Wire connection CAGE CLAMP ®
Cross sections 0.08 mm² ... 2.5 mm² / 28 ... 14 AWG
Strip lengths 750 Series: 8 ... 9 mm / 0.33 in.
753 Series: 9 ... 10 mm / 0.37 in.

®
Housing Design 750 Series with CAGE CLAMPS S Connection Special Housing Design 750 Series
(16 Connection Terminals)
Dimensions (mm) 51 x 70 x 100
Dimensions (mm) 12 x 65 x 100 W x H x L (Height from upper edge of the DIN-rail)
W x H x L (Height from upper edge of the DIN-rail)
Wire connection CAGE CLAMP ®
®
Wire connection CAGE CLAMP S
Cross sections 0.08 mm² ... 1.5 mm² / 28 ... 14 AWG
Cross sections solid:
Strip lengths 5 ... 6 mm / 0.22 in.
0.08 mm² ... 2.5 mm² / 28 ... 16 AWG
fine-stranded:
0.25 mm² ... 1.5 mm² / 22 ... 16 AWG
Strip lengths 8 ... 9 mm / 0.33 in.

4
