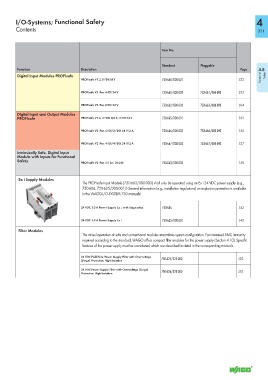

I/O-Systems; Functional Safety 4
Contents 331

Item No.

Standard Pluggable
Function Description Page 4.8
Digital Input Modules PROFIsafe Functional Safety
PROFIsafe V1.3, 8 FDI 24 V 750-660/000-001 332

PROFIsafe V2 iPar, 4 FDI 24 V 750-661/000-003 753-661/000-003 333

PROFIsafe V2 iPar, 8 FDI 24 V 750-662/000-003 753-662/000-003 334
Digital Input and Output Modules
PROFIsafe PROFIsafe V1.3, 4 FDO 0,5 A, 4 FDI 24 V 750-665/000-001 335

PROFIsafe V2 iPar, 4 FDI/2 FDO 24 V/2 A 750-666/000-003 753-666/000-003 336

PROFIsafe V2 iPar, 4 FDI/4 FDO 24 V/2 A 750-667/000-003 753-667/000-003 337

Intrinsically Safe, Digital Input
Module with Inputs for Functional
Safety 750-663/000-003
PROFIsafe V2 iPar, 4 F Ex i DI 24V 338

Ex i Supply Modules
The PROFIsafe Input Module (750-663/000-003) shall only be operated using an Ex i 24 VDC power supply (e.g.,
750-606, 750-625/000-001)! General information (e.g., installation regulations) on explosion protection is available
in the WAGO-I/O-SYSTEM 750 manuals!

24 VDC 1.0 A Power Supply Ex i, with diagnostics 750-606 342

24 VDC 1.0 A Power Supply Ex i 750-625/000-001 342
Filter Modules
The mixed operation of safe and conventional modules streamlines system configuration. For increased EMC immunity
required according to the standard, WAGO offers compact filter modules for the power supply (Section 4.10). Specific
features of the power supply must be considered, which are described in detail in the corresponding manuals.

24 VDC Field Side Power Supply Filter with Overvoltage 750-624/020-000
(Surge) Protection, High Isolation 382
24 VDC Power Supply Filter with Overvoltage (Surge) 750-626/020-000
Protection, High Isolation 383
