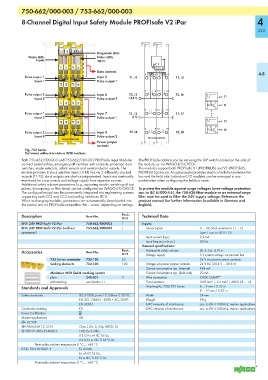

Page 335 - Wago_AutomationTechnology_Volume3_2015_US.pdf

750-662/000-003 / 753-662/000-003

8-Channel Digital Input Safety Module PROFIsafe V2 iPar 4

333

13 14 15 16 Diagnostic LEDs
Status LEDs Status LEDs
Inputs Inputs
T1 I1 T1 I5
Data contacts
9 13 4.8
Pulse output 1 Input 5 T1, I1 T1, I5
Input 1 Pulse output 1
T2 I2 T2 I6
10 14
Pulse output 2 Input 6 T2, I2 T2, I6 T1
Input 2 Pulse output 2 +24 V
T1 I3 T1 I7
I1
11 15
Pulse output 1 Input 7 T1, I3 T1, I7
Input 3 Pulse output 1 0 V
T2 I4 T2 I8 T2
12 16 I8
Pulse output 2 Input 8 T2, I4 T2, I8
Input 4 Pulse output 2
750-662/000-003 750-662/000-003
Power jumper
contacts
Fig. 750 Series
Delivered without miniature WSB markers
Both 750-662/000-003 and 753-662/000-003 PROFIsafe Input Modules The PROFIsafe address can be set using the DIP switch located on the side of
connect potential-free, emergency-off switches with contacts, protection door the module, or via WAGO-I/O-CHECK.
switches, mode selectors, safety sensors and semiconductor outputs. The The modules support both PROFIsafe V1 (PROFIBUS) and V2 (PROFIBUS,
module provides 8 clock sensitive inputs (I1-I8) fed via 2 differently clocked PROFINET) protocols. An optocoupler provides electrical isolation between the
outputs (T1-T2); clock outputs are short-circuit protected. Inputs are continually bus and the field side. Individual I/O modules can be arranged in any
monitored for cross circuits and voltage supply from separate sources. combination when configuring the fieldbus node.
Additional safety relevant parameters (e.g., operating modes, switching off test
pulses, discrepancy or filter times) can be configured via WAGO-I/O-CHECK. To protect the module against surge voltages (over-voltage protection
The configuration tool can be conveniently integrated into engineering systems acc. to IEC 61000-4-5), the 750-626 filter module or an external surge
supporting both CC2 and CC3 tool calling interfaces (TCI). filter must be used to filter the 24V supply voltage. Reference the
When exchanging modules, parameters are automatically downloaded into product manual for further information (available in German and
the control unit via PROFIsafe-compatible iPar -- server, depending on settings. English).

Description Item No. Pack. Technical Data
Unit
8FDI 24V PROFIsafe V2 iPar 750-662/000-003 1 Inputs:
8FDI 24V PROFIsafe V2 iPar (without 753-662/000-003 1 Sensor inputs I1 ... I8; clock sensitive to T1 ... T2
connector) Type 1 acc. to IEC61131
Input current (typ.) 2.2 mA
Input frequency (max.) 50 Hz
General specifications:
Accessories Item No. Pack. Achievable safety classes SIL 3; Cat. 4, PL e
Unit
5 V system voltage via internal bus
Voltage supply
753 Series connector 753-120 25 24 V via power jumper contacts
Coding elements 753-150 100 Voltage via power jumper contacts 24 V DC (20.4 V ... 28.8 V)
Current consumption typ. (internal) 148 mA
Miniature WSB Quick marking system Current consumption typ. (field side) 20 mA
plain 248-501 5 Wire connection CAGE CLAMP ®
with marking see Section 11 Cross sections 0.08 mm² ... 2.5 mm² / AWG 28 ... 14
Standards and Approvals Strip lengths, 750/753 Series 8 ... 9 mm / 0.33 in
9 ... 10 mm / 0.37 in
Safety standards IEC 61508, parts 1-7, Edition 2: 2010; Width 24 mm
EN ISO 13849-1: 2008 + AC: 2009; Weight 98 g
EN 62061 EMC immunity of interference acc. to EN 61000-6-2, marine applications
Conformity marking 1 EMC emission of interference acc. to EN 61000-6-4, marine applications
Korea Certification
Marine applications GL
r UL 508
r ANSI/ISA 12.12.01 Class I, Div. 2, Grp. ABCD, T4
4 TÜV 07 ATEX 554086 X I M2 Ex d I Mb,
II 3 G Ex nA IIC T4 Gc,
II 3 D Ex tc IIIC T135°C Dc
Permissible ambient temperature 0 °C ... +60 °C
IECEx TUN 09.0001 X Ex d I Mb,
Ex nA IIC T4 Gc,
Ex tc IIIC T135°C Dc
Permissible ambient temperature 0 °C ... +60 °C
