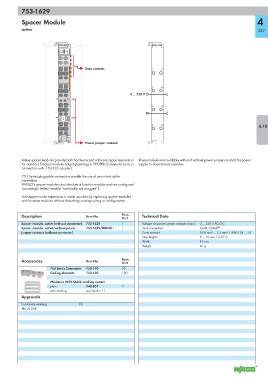

Page 389 - Wago_AutomationTechnology_Volume3_2015_US.pdf

753-1629

Spacer Module 4

active 387

753-1629 753-1629
13 14
A
C
B
D
Data contacts

0 ... 230 V

L
4.10

Power jumper contacts

Active spacer modules provide both hardware and software space reservation These modules are available with and without power jumper contacts for power
for standard function modules (digital/analog) in PROFIBUS networks (only in supply to downstream modules.
connection with 750-333 coupler).
753 Series pluggable connectors enable the use of pre-wired cable
assemblies.
WAGO's spacer modules also simulate a function module and are configured
accordingly (select module “optionally not plugged”).
Subsequent node expansion is made possible by replacing spacer modules
with function modules without disturbing existing wiring or configuration.

Description Item No. Pack. Technical Data
Unit
Spacer module, active (without connector) 753-1629 1 Voltage via power jumper contacts (max.) 0 ... 230 V AC/DC
Spacer module, active/without power 753-1629/000-001 1 Wire connection CAGE CLAMP ®
jumper contacts (without connector) Cross sections 0.08 mm² ... 2.5 mm² / AWG 28 ... 14
Strip lengths 9 ... 10 mm / 0.37 in
Width 12 mm
Weight 61 g

Accessories Item No. Pack.
Unit
753 Series Connectors 753-110 25
Coding elements 753-150 100

Miniature WSB Quick marking system
plain 248-501 5
with marking see Section 11
Approvals
Conformity marking 1
r UL 508
