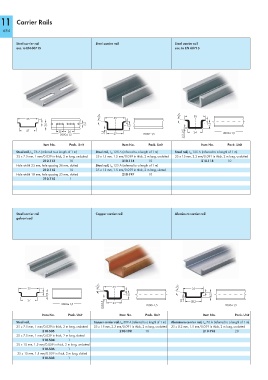

11 Carrier Rails

684

Steel carrier rail Steel carrier rail Steel carrier rail
acc. to EN 60715 acc. to EN 60715

15° 15°
> <_ > 7,5 < > < 5,2 <____ 35 ____> > <_ 1 (_15_) < (_15_)
1
<____ 35 ____> <____ 35 ____> ><_ 1
<___ 27 ___> > <_1,5
(_25_) <_ 36 _> 2000± 1,5 2,2- 2,5 _____> <__24__> 2000± 1,5
2000± 1,5 <___ 27 ___>
Item No. Pack. Unit Item No. Pack. Unit Item No. Pack. Unit
Steel rail, I N 76 A (referred to a length of 1 m) Steel rail, I N 125 A (referred to a length of 1 m) Steel rail, I N 125 A (referred to a length of 1 m)
35 x 7.5 mm, 1 mm/0.039 in thick, 2 m long, unslotted 35 x 15 mm, 1.5 mm/0.059 in thick, 2 m long, unslotted 35 x 15 mm, 2.3 mm/0.091 in thick, 2 m long, unslotted
210-113 10 210-114 10 210-118 10
Hole width 25 mm; hole spacing 36 mm, slotted Steel rail, I N 125 A (referred to a length of 1 m)
210-112 10 35 x 15 mm, 1.5 mm/0.059 in thick, 2 m long, slotted
Hole width 18 mm; hole spacing 25 mm, slotted 210-197 10
210-115 1

Steel carrier rail Copper carrier rail Aluminum carrier rail
galvanized

15° 15°
><_ > 7,5 < < (_15_) > <_ 1,6 <____ 35 ____> > <1 8,2
1 <____ 35 ____>
<____ 35 ____> > <_ 1
2,2-2,5 2000± 1,5 2000± 1,5
<___27 ___> <__ 28,2 __>
2000± 1,5 _____> <__ 24 __>
Item No. Pack. Unit Item No. Pack. Unit Item No. Pack. Unit
Steel rail, Copper carrier rail, I N 309 A (referred to a length of 1 m) Aluminum carrier rail, I N 76 A (referred to a length of 1 m)
35 x 7.5 mm, 1 mm/0.039 in thick, 2 m long, unslotted 35 x 15 mm, 2.3 mm/0.091 in thick, 2 m long, unslotted 35 x 8.2 mm, 1.5 mm/0.059 in thick, 2 m long, unslotted
210-505 1 210-198 10 210-196 20
35 x 7.5 mm, 1 mm/0.039 in thick, 2 m long, slotted
210-504 1
35 x 15 mm, 1.5 mm/0.059 in thick, 2 m long, unslotted
210-506 1
35 x 15 mm, 1.5 mm/0.059 in thick, 2 m long, slotted
210-508 1
