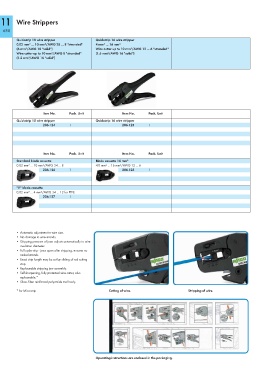

Page 690 - Wago_AutomationTechnology_Volume3_2015_US.pdf
P. 690
11 Wire Strippers
688
Quickstrip 10 wire stripper Quickstrip 16 wire stripper
0.02 mm² ... 10 mm²/AWG 28 ... 8 "stranded" 4 mm² ... 16 mm²
(6 mm²/AWG 10 "solid") Wire cutter up to 10 mm²/AWG 12 ... 6 "stranded"
Wire cutter up to 10 mm²/AWG 8 "stranded" (1.5 mm²/AWG 16 "solid")
(1.5 mm²/AWG 16 "solid")
Item No. Pack. Unit Item No. Pack. Unit
Quickstrip 10 wire stripper Quickstrip 16 wire stripper
206-124 1 206-125 1
Item No. Pack. Unit Item No. Pack. Unit
Standard blade cassette Blade cassette 16 mm²
0.02 mm² ... 10 mm²/AWG 34 ... 8 4.0 mm² ... 16 mm²/AWG 12 ... 6
206-126 1 206-128 1
"V" blade cassette
0.02 mm² ... 4 mm²/AWG 34 ... 12 for PTFE
206-127 1
• Automatic adjustment to wire size.
• No damage to wire strands.
• Gripping pressure of jaws adjusts automatically to wire
insulation diameter.
• Full cycle strip - jaws open after stripping, ensures no
nicked strands.
• Exact strip length may be set by sliding of red setting
stop.
• Replaceable stripping jaw assembly.
• Self-sharpening, fully protected wire cutter, also
replaceable.*
• Glass fiber reinforced polyamide tool body.
* for Microstrip Cutting of wire. Stripping of wire.
Operating instructions are enclosed in the packaging.
