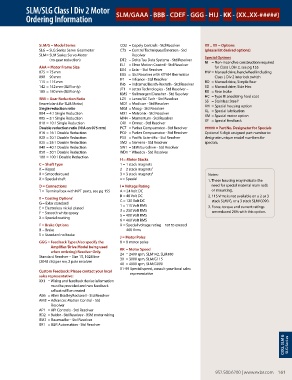

SLM/SLG Class I Div 2 Motor

Ordering Information SLM/GAAA - BBB - CDEF - GGG - HIJ - KK - (XX..XX-#####)

SLM/G = Model Series CO2 = Copely Controls - Std Resolver XX .. XX = Options
SLG = SLG Series Servo Gearmotor CT5 = Control Techniques/Emerson - Std (please list desired options)
SLM = SLM Series Servo Motor Resolver Special Options
(no gear reduction) DT2 = Delta Tau Data Systems - Std Resolver NI = Non-incendive construction required
EL1 = Elmo Motion Control - Std Resolver
AAA = Motor Frame Size EX4 = Exlar - Std Resolver for Class I, Div 2, see pg 155
075 = 75 mm EX5 = Std Resolver with KTY84 thermistor HW = Manual drive, handwheel including
090 = 90 mm IF1 = Infranor - Std Resolver Class I, Div 2 interlock switch
115 = 115 mm IN6 = Indramat/Bosch-Rexroth - Std Resolver RD = Manual drive, Simple Rear
142 = 142 mm (SLM only) JT1 = Jetter Technologies - Std Resolver – SD = Manual drive, Side Hex
180 = 180 mm (SLM only) RB = Rear brake
KM5 = Kollmorgen/Danaher - Std Resolver
BBB = Gear Reduction Ratio LZ5 = Lenze/AC Tech - Std Resolver HC = Type III anodizing hard coat
3
SS = Stainless Steel
(leave blank for SLM Motor) MD1 = Modicon - Std Resolver XH = Special housing option
Single reduction ratio MG1 = Moog - Std Resolver XL = Special lubrication
004 = 4:1 Single Reduction MX1 = Metronix - Std Resolver XM = Special motor option
005 = 5:1 Single Reduction MN4 = Momentum - Std Resolver XF = Special feedback
010 = 10:1 Single Reduction OR1 = Ormec - Std Resolver
Double reduction ratio (N/A on 075 mm) PC7 = Parker Compumotor - Std Resolver ##### = Part No. Designator for Specials
016 = 16:1 Double Reduction PC0 = Parker Compumotor - Std Resolver Optional 5 digit assigned part number to
020 = 20:1 Double Reduction PS3 = Pacific Scientific - Std Resolver designate unique model numbers for
025 = 25:1 Double Reduction SM2 = Siemens - Std Resolver specials.
040 = 40:1 Double Reduction SW1 = SEW/Eurodrive - Std Resolver
050 = 50:1 Double Reduction WD1 = Whedco - Std Resolver
100 = 100:1 Double Reduction
H = Motor Stacks
C = Shaft Type 1 = 1 stack magnets
K = Keyed 2 = 2 stack magnets 2
R = Smooth/round 3 = 3 stack magnets 2 Notes:
X = Special shaft x = Special 1. These housing may indicate the
D = Connections I = Voltage Rating need for special material main rods
T = Terminal box with NPT ports, see pg 155 A = 24 Volt DC or mounting.
B = 48 Volt DC 2. 115 Vrms is not available on a 2 or 3
E = Coating Options 1 C = 120 Volt DC stack SLM/G, or a 3 stack SLM/G090.
G = Exlar standard 1 = 115 Volt RMS
E = Electroless nickel plated 3 = 230 Volt RMS 3. Force, torque and current ratings
F = Smooth white epoxy 5 = 400 Volt RMS are reduced 25% with this option.
X = Special coating
6 = 460 Volt RMS
F = Brake Options X = Special voltage rating – not to exceed
B = Brake 460 Vrms
S = Standard no brake
J = Motor Poles
GGG = Feedback Type (Also specify the 8 = 8 motor poles
Amplifier/Drive Model being used KK = Motor Speed
when ordering) Resolver Only.
Standard Resolver – Size 15, 1024 line 24 = 2400 rpm, SLM142, SLM180
30 = 3000 rpm, SLM/G115
(2048 cts) per rev, 2 pole resolver 40 = 4000 rpm, SLM/G090
01-99 Special speed, consult your local sales
Custom Feedback: Please contact your local representative
sales representative:
XX1 = Wiring and feedback device information
must be provided and new feedback
callout will be created
AB6 = Allen BradleyRockwell - Std Resolver
AM3 = Advancec Motion Control - Std
Resolver
AP1 = API Controls - Std Resolver
BD2 = Baldor - Std Resolve r - BSM motor wiring
BM2 = Baumueller - Std Resolver
BR1 = B&R Automation - Std Resolver

CID2, SLM & SLG Seri es
