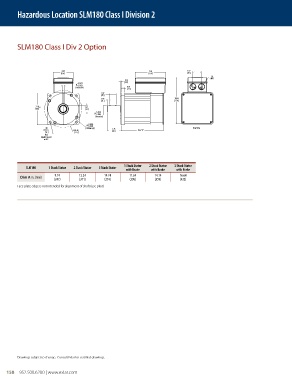

Hazardous Location SLM180 Class I Division 2

SLM180 Class I Div 2 Option

4.49 7.01 1.97
114 178 50
2X
1 NPT
0.16
0.3937 4.0
Ø 0.3923
[10mm h9] 0.81
21
1.57
40
0.45 10.64
11 270
7.28 1.61
185 41
1.4961
Ø 1.4954
[38mm h6]
7.0860
Ø 7.0849
4X [180mm g6] Rear View
Ø 0.51 Ø 8.46 3.15 Dim "A"
80
13 215
Thru
Equally Spaced
on B.C.
1 Stack Stator 2 Stack Stator 3 Stack Stator
SLM180 1 Stack Stator 2 Stack Stator 3 Stack Stator
with Brake with Brake with Brake
9.74 12.24 14.74 11.64 14.14 16.64
Dim A in. (mm)
(247) (311) (374) (296) (359) (423)
Face plate edge is not intended for alignment of shaft (use pilot)

Drawings subject to change. Consult Exlar for certified drawings.
