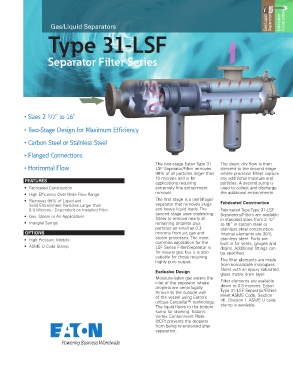

Page 13 - Eaton - Gas/Liquid separators

Gas/Liquid Separation Fabricated Construction

Gas/Liquid Separators
Type 31-LSF

Separator Filter Series

• Sizes 2 /2” to 16”
1

• Two-Stage Design for Maximum Efficiency

• Carbon Steel or Stainless Steel

• Flanged Connections

The two-stage Eaton Type 31 The clean, dry flow is then
• Horizontal Flow LSF Separator/Filter removes directed to the second stage
99% of all particles larger than where precision filters capture
10 microns and is for any additional moisture and
FEATURES applications requiring particles. A second sump is
• Fabricated Construction extremely fine entrainment used to collect and discharge
• High Efficiency Over Wide Flow Range removal. the additional entrainments.
• Removes 99% of Liquid and The first stage is a centrifugal Fabricated Construction
Solid Entrainment Particles Larger than separator that removes slugs
0.3 Microns - Dependent on Installed Filter and heavy liquid loads. The Fabricated Type Type 31-LSF
second stage uses coalescing Separators/Filters are available
• Gas, Steam or Air Applications filters to remove nearly all in standard sizes from 2 1 /2”
• Intergral Sumps remaining droplets plus to 16” in carbon steel or
particles as small as 0.3 stainless steel construction.
OPTIONS microns from air, gas and Internal elements are 304L
steam processes. The most stainless steel. Ports are
• High Pressure Models common application for the
• ASME U Code Stamp LSF Series Filter/Separator is built in for vents, gauges and
drains. Additional fittings can
for natural gas, but it is also be specified.
suitable for those requiring
highly pure output. The filter elements are made
from borosilicate microglass
fibers with an epoxy saturated,
Exclusive Design glass matrix drain layer.
Moisture-laden gas enters the
inlet of the separator where Filter elements are available
droplets are centrifugally down to 0.3 microns. Eaton
thrown to the outside wall Type 31-LSF Separator/Filters
of the vessel using Eaton’s meet ASME Code, Section
unique Cenpellar™ technology. VII, Division 1. ASME U code
The liquid flows to the bottom stamp is available.
sump for draining. Eaton’s
Vortex Containment Plate
(VCP) prevents the droplets
from being re-entrained after
separation.
