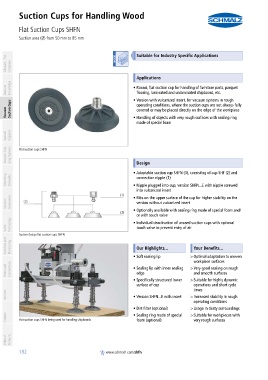

Suction Cups for Handling Wood
Flat Suction Cups SHFN
PA01019111_inh_EN.pdf Suction area (Ø) from 50 mm to 85 mm PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications
Vacuum Knowledge • Round, flat suction cup for handling of furniture parts, parquet
flooring, laminated and unlaminated chipboard, etc.
• Version with vulcanized insert, for vacuum systems in rough
Vacuum Suction Cups operating conditions, where the suction cups are not always fully
covered or may be placed directly on the edge of the workpiece
• Handling of objects with very rough surfaces with sealing ring
made of special foam

Special Grippers

Vacuum Grip- ping Systems Flat suction cups SHFN Design

container

• Adaptable suction cup SHFN (3), consisting of cup SHF (2) and
Mounting Elements connection nipple (1)
• Nipple plugged into cup; version SHFN...E with nipple screwed
into vulcanized insert
Vacuum Generators • Ribs on the upper surface of the cup for higher stability on the
version without vulcanized insert
• Optionally available with sealing ring made of special foam and/
or with touch valve
Valve Technology • Individual deactivation of unused suction cups with optional
touch valve to prevent entry of air
System design flat suction cups SHFN
Switches and Monitoring container Our Highlights... Your Benefits...

• Soft sealing lip >Optimal adaptation to uneven
workpiece surfaces
Filters and Connections • Sealing lip with inner sealing >Very good sealing on rough

edge
and smooth surfaces
• Specifically structured lower >Suitable for highly dynamic
surface of cup operations and short cycle
times
Services • Version SHFN...E with insert >Increased stability in rough

operating conditions
• Dirt filter (optional) >Usage in dusty surroundings
Contact Flat suction cups SHFN being used for handling chipboards • Sealing ring made of special >Suitable for workpieces with
very rough surfaces
foam (optional)

Index of Products

182 www.schmalz.com/shfn
