Suction Cups for Handling Wood
Flat Suction Cups SHFN
PA01019111_inh_EN.pdf Suction area (Ø) from 50 mm to 85 mm PA01019111_inh_EN.pdf

container

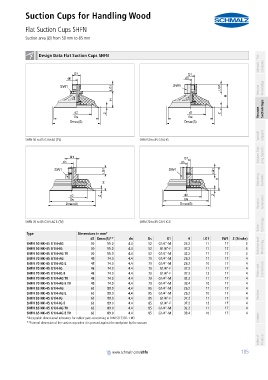

container Design Data Flat Suction Cups SHFN Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

Special Grippers
SHFN 50 to 85 G1/4-AG (TV) SHFN 50 to 85 G1/4-IG
Vacuum Grip- ping Systems
container

Mounting Elements

Vacuum Generators

SHFN 70 to 85 G1/4-AG E (TV) SHFN 70 to 85 G1/4-IG E Technology
Valve
container
Type Dimensions in mm*
d2 Dmax(S)** dn Ds G1 H LG1 SW1 Z (Stroke)
SHFN 50 NK-45 G1/4-AG 30 55.0 4.4 52 G1/4"-M 26.2 11 17 3 Switches and
SHFN 50 NK-45 G1/4-IG 30 55.0 4.4 52 G1/4"-F 37.2 11 17 3 Monitoring
SHFN 50 NK-45 G1/4-AG TV 30 55.0 4.4 52 G1/4"-M 32.2 11 17 3
SHFN 70 NK-45 G1/4-AG 48 74.0 4.4 70 G1/4"-M 26.2 11 17 4
SHFN 70 NK-45 G1/4-AG E 48 74.0 4.4 70 G1/4"-M 26.2 10 17 4
SHFN 70 NK-45 G1/4-IG 48 74.0 4.4 70 G1/4"-F 37.2 11 17 4 Filters and Connections
SHFN 70 NK-45 G1/4-IG E 48 74.0 4.4 70 G1/4"-F 37.2 12 17 4
SHFN 70 NK-45 G1/4-AG TV 48 74.0 4.4 70 G1/4"-M 32.2 11 17 4
SHFN 70 NK-45 G1/4-AG E TV 48 74.0 4.4 70 G1/4"-M 33.4 10 17 4
SHFN 85 NK-45 G1/4-AG 62 89.0 4.4 85 G1/4"-M 26.2 11 17 4
SHFN 85 NK-45 G1/4-AG E 62 89.0 4.4 85 G1/4"-M 26.2 10 17 4 Services
SHFN 85 NK-45 G1/4-IG 62 89.0 4.4 85 G1/4"-F 37.2 11 17 4
SHFN 85 NK-45 G1/4-IG E 62 89.0 4.4 85 G1/4"-F 37.2 12 17 4
SHFN 85 NK-45 G1/4-AG TV 62 89.0 4.4 85 G1/4"-M 32.2 11 17 4
SHFN 85 NK-45 G1/4-AG E TV 62 89.0 4.4 85 G1/4"-M 33.4 10 17 4
*Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3 Contact
**External dimension of the suction cup when it is pressed against the workpiece by the vacuum

Index of Products

container
www.schmalz.com/shfn
