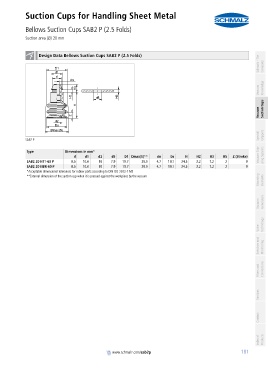

Suction Cups for Handling Sheet Metal
Bellows Suction Cups SAB2 P (2.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) 20 mm PA01019111_inh_EN.pdf
container
container Design Data Bellows Suction Cups SAB2 P (2.5 Folds) Schmalz - The Company
Vacuum Knowledge
Vacuum Suction Cups
Special Grippers
SAB2 P
container
Type Dimensions in mm*
d d1 d2 d5 D1 Dmax(S)** dn Ds H H2 H3 H5 Z (Stroke) Vacuum Grip- ping Systems
SAB2 20 HT1-60 P 8.5 10.6 10 7.9 19.7 20.5 4.7 19.1 24.5 2.2 7.2 2 9
SAB2 20 NBR-60 P 8.5 10.6 10 7.9 19.7 20.5 4.7 19.1 24.5 2.2 7.2 2 9
*Acceptable dimensional tolerances for rubber parts according to DIN ISO 3302-1 M3
Mounting Elements
**External dimension of the suction cup when it is pressed against the workpiece by the vacuum
